FN Series -- Showtechled Outdoor Fixed Pantallas Exterior Video
Wall LED Display Billboard Advertising LED Screen
(1) Description of Outdoor Fixed Pantallas Exterior Video Wall Advertising
Billboard LED Screen:
1. In direct sunlight, the outdoor LED display can be
high-definition and high-brightness, high refresh rate, high
contrast.
2. Operating Temperature -40℃～+60℃, FN series can work well in
extreme hot and cold areas. For example, Mid-east, Russia, etc.
3. Outdoor IP65 is waterproof, dustproof and corrosion proof,
ensures smooth and reliable operation under variable and extreme
weather conditions.
(2) Quick Detail:

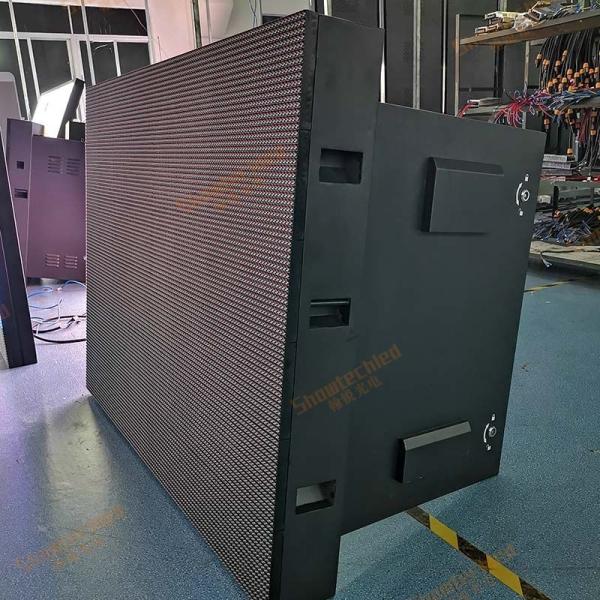

● Cabinet size: 768(W)*768(H)*160(D)mm
● Cabinet material: Iron
● Viewing angle: 160°(horz.), 160° (vert.)
● Brightness: 5500nits
● Refresh rate: 1920Hz/3840Hz
● Work Voltage: AC190-264V
● Maintenance Type: Back Maintenance
● IP Rating(Front/Rear): IP65/IP54
(3) Specifications:
| Module Parameter |
| 1 | Item | FN4 |
| 2 | Pixel Pitch | 4mm |
| 3 | Pixel density | 62500dots/㎡ |
| 4 | LED configuration | SMD1921 |
| 5 | Module size | 256(W)×128(H)×15(D)mm |
| 6 | Module resolution | 64(W)x32(H) |
| 7 | Module weight | 0.5Kg |
| 8 | Scanning Mode | 1/10 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 192(W)x192(H) |
| 2 | Cabinet size | 768(W)×768(H)×160(D)mm |
| 3 | Cabinet material | Iron |
| 4 | Cabinet weight | 40kg |
| 5 | Module number | 3*6 |
| 6 | Brightness | 5500cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 4m-40m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 880W/㎡ |
| 11 | Avg Power Consumption | 294W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 1920Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+60℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP54 |
| 19 | maintenance type | back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
- It is usually necessary to regularly check whether the waterproof
rubber ring of the cabinet is aging, deformed or incomplete;
whether the screws or locks of the sealing cabinet are easy to
loosen and the pressure is not enough.
- When installing and disassembling the product, please disconnect
the power supply to avoid electric shock.
- Do not expose the copper wire outside the power terminal hole to
avoid short circuit or electric shock.
- Be sure to connect the wires correctly, do not connect the wrong
wires.
- Outdoor LED displays exposed to outdoor environments for a long
time are easily contaminated with dust. It can be wiped with
alcohol, or dusted with a brush or a vacuum cleaner, but cannot be
wiped directly with a damp cloth.
- Outdoor LED display needs to rest for more than 2 hours a day, and
use it at least once a week during the rainy season. Turn on the
screen at least once a month for more than 2 hours.
Application:
Widely used for outdoor squares, stadiums, hotels, hospitals,
schools, shopping malls, supermarkets, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What is your delivery time ,Can we receive our goods on time?
A: We offer fast lead time, usally 1-2 days if on stocks , 15--25
days if out of stocks. Please contact us for a accurate delivery
date in advance.
Q3. If I broad the market, can I be your agents?
A: Yes, we want to build relationship with all local powerful
distributor service is good for support you do long time local
service to win customer. Our price and quality can give our
customer more profit.
Q4. How to proceed an order for led display?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our
suggestions.
Thirdly, customer confirms the samples and places deposit for
formal order.
Fourth, we arrange production and delivery.
Q5. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them,no matter where they come from.
