FN Series -- Showtechled Indoor Fixed High Refresh Rate LED Video
Wall Display Advertising LED Panel Screen
(1) Description:
1. Special LED Cabinet design, Comletely Front Service, mainly use
for indoor fixed installation.
2. 320*160mm LED Module size design, the LED cabinet compatible
with P1.25, P1.667, P1.83, P1.86, P2, P2.5, P3, P4, P5 etc.
3. Super thin, light weight,only 8kg per LED panel, easy to
install.
4. Seamless and flatness to ensure high quality video effect.
(2) Quick Detail:
Pixel Pitch: 2.5mm
Brightness: 1000cd/㎡
Refresh rate: 3840Hz
Viewing angle: 120°(horz.), 120° (vert.)
Maintenance type: Front maintenance
Life Span: 100,000Hours
(3) Specifications:
| Module Parameter |
| 1 | Item | FN2.5 |
| 2 | Pixel Pitch | 2.5mm |
| 3 | Pixel density | 160000 dots/㎡ |
| 4 | LED configuration | SMD1921 |
| 5 | Module size | 320(W)×160(H)×12(D)mm |
| 6 | Module resolution | 128(W)x64(H) |
| 7 | Module weight | 0.5Kg |
| 8 | Scanning Mode | 1/32 |
| 9 | IC model | FM6353 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 256(W)x256(H) |
| 2 | Cabinet size | 640(W)×640(H)×60(D)mm |
| 3 | Cabinet material | Iron |
| 4 | Cabinet weight | 8kg |
| 5 | Module number | 2*4 |
| 6 | Brightness | 1000cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 2.5m-25m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 450W/㎡ |
| 11 | Avg Power Consumption | 150W/㎡ |
| 12 | Work Voltage | AC90-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
1. Check the circuit and switch of the LED display screen, keep the
switch dry, and avoid leakage and electric shock accidents.
2. The air conditioner can be used to dehumidify the LED display,
and the desiccant and physical moisture absorption can be placed to
keep it dry and prevent the display from getting wet.
3. During the rainy season, the LED screen display is guaranteed to
be used at least once a week, and it is lit for at least 2 hours
each time.
4. The LED display is properly ventilated, which can quickly
evaporate the water vapor attached to the display and reduce the
humidity of the indoor environment. But it should be noted that:
avoid ventilation in some windless and humid weather, which will
increase the indoor humidity.

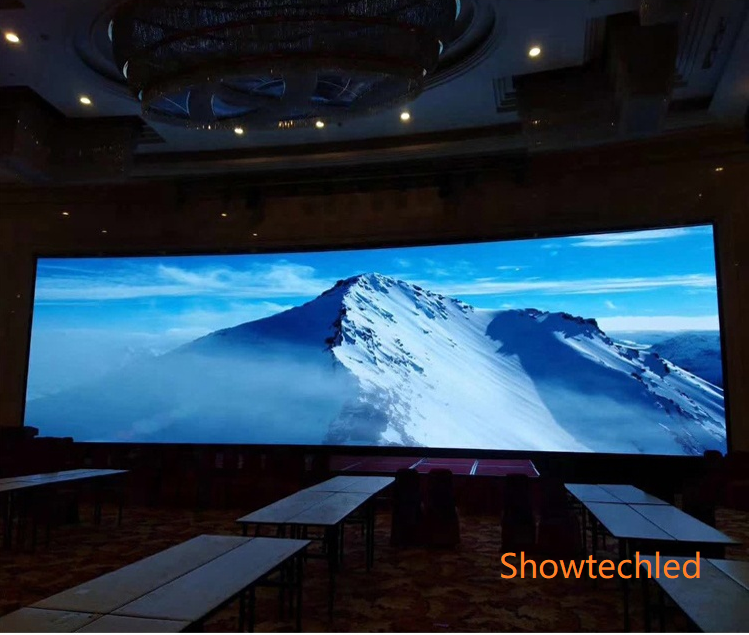

Application:
Widely used in TV studio, conference room, showroom, government
center, airport, hotel, church, restaurant, shopping mall, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. Is the product customization?
A: Yes, we can customize the product according to customer’s needs
you just need to provide the requirements details.
Q3. What is your terms of payment?
A: EXW, FOB,CFR, CIF, DDP, DDU etc.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. How about your delivery time?
A: Generally, it will takes about 7-30 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
