HD Series -- Showtechled High Refresh Rate Indoor Small Pixel Pitch
LED Display Advertising Wall LED Screen
(1) Description of High Refresh Rate Indoor Small Pixel Pitch LED Display :
1. Special 640*480mm Die-casting Aluminum LED Cabinet design,
Comletely Front Service, mainly use for indoor fixed installation.

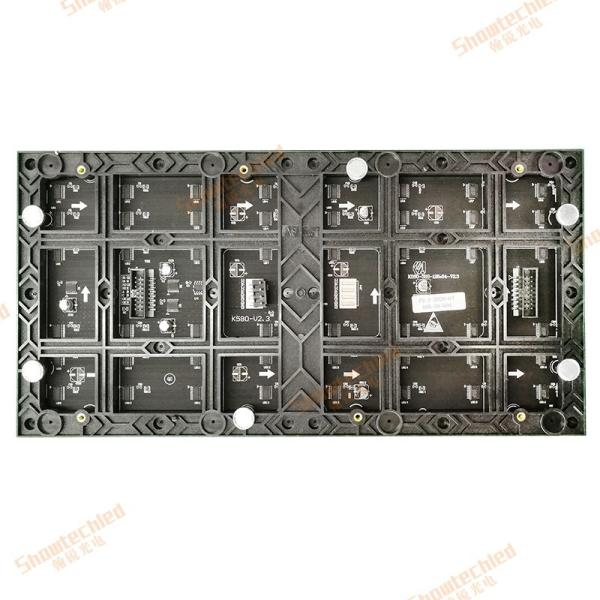

2. 320*160mm LED Module size design, the LED cabinet compatible
with P1.25, P1.667, P1.83, P1.86, P2, P2.5, P3, P4, P5.
3. Super thin, light weight,only 10kg per LED panel, with handles
and fast locks, easy to install.
4. Seamless and flatness to ensure high quality video effect.
(2) Quick Detail:
Pixel Pitch: 2mm
Module Size: 320(W)×160(H)mm
Refresh rate: 3840Hz.
Cabinet material: Die Casting Aluminum
Maintenance type: Front maintenance.
Life Span: 100,000Hours
(3) Specifications:
| Module Parameter |
| 1 | Item | HD2.0 |
| 2 | Pixel Pitch | 2.0mm |
| 3 | Pixel density | 250000dots/㎡ |
| 4 | LED configuration | SMD1515 |
| 5 | Module size | 320(W)×160(H)×12(D)mm |
| 6 | Module resolution | 160(W)x80(H) |
| 7 | Module weight | 0.5Kg |
| 8 | Scanning Mode | 1/40 |
| 9 | IC model | FM6353 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 320(W)x240(H) |
| 2 | Cabinet size | 640(W)×480(H)×50(D)mm |
| 3 | Cabinet material | Die casting Magnesium alloy |
| 4 | Cabinet weight | 6kg |
| 5 | Module number | 2*3 |
| 6 | Brightness | 1000cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 2m-20m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 450W/㎡ |
| 11 | Avg Power Consumption | 150W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+ 50℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
1. Open the package, check the product carefully, and handle it
with care to avoid damage to the product.
2. Be sure to connect the wires correctly, do not connect the wrong
wires.
3. Check the circuit and switch of the LED display screen, keep the
switch dry, and avoid leakage and electric shock accidents.
4. The air conditioner can be used to dehumidify the LED display,
and the desiccant and physical moisture absorption can be placed to
keep it dry and prevent the display from getting wet.
Application:
It is widely used in conference rooms, monitoring rooms, stadiums,
airports, shopping malls, TV stations and other important places.
