C Series -- Showtechled Outdoor Big Media Facade Fasade Billboard
Advertising Mesh Curtain LED Screen High Definition

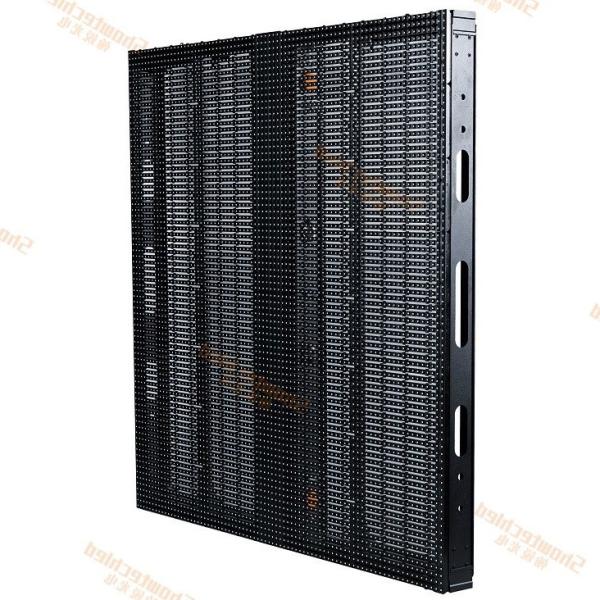

(1) Description of Outdoor Large Media Fasade Billboard Advertising Mesh
Curtain LED Display:
1. IP65 high waterprooof level meets the requirement for extreme
outdoor environment.
2. Our outdoor mesh screen is lighter, cabinet weight only 21Kg.
and the wind load is much smaller.
3. Mainly used in outdoor walls, glass curtain walls, building tops
and other fields. The LED mesh screen breaks through the many
restrictions on the building and the wall of the conventional LED
display, making the project more flexible and more choices.
(2) Quick Detail:
● Cabinet Size: 1000(W)×1000(H)×80(D)mm
● Cabinet Weight: 18Kg
● Brightness: 6500cd/㎡
● Optimal View Distance: 12m
● Gray scale: 15(bit)
● Maintenance type: Front / Back Maintenance
● Operating Temperature: ( -40℃～+60℃)
(3) Specifications:
| Module Parameter |
| 1 | Item | C1212 |
| 2 | Pixel Pitch | 12.5x12.5mm(H*V) |
| 3 | Pixel density | 6400dots/㎡ |
| 4 | LED configuration | SMD 3535 |
| 5 | Module size | 500(W)×125(H)×25(D)mm |
| 6 | Module resolution | 40(W)x10(H) |
| 7 | Scanning Mode | 1/2 Scan |
| Cabinet Parameter |
| 1 | Cabinet resolution | 80(W)x80(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×80(D)mm |
| 3 | Cabinet weight | 18kg |
| 4 | Cabinet marerial | Aluminum |
| 5 | Transparency Rate | 35% |
| 6 | Brightness | 6500cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 12m |
| 9 | Gray scale | 15(bit) |
| 10 | Max Power Consumption | 850W/㎡ |
| 11 | Avg Power Consumption | 250W/㎡ |
| 12 | Work Voltage | AV190-260V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+60℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP65 |
| 19 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
1. Check the circuit and switch of the LED screen, keep the switch
dry, and avoid leakage and electric shock accidents.
2. Regularly inspect whether the anti-corrosion and anti-rust paint
on the surface of the product and steel structure welding points is
peeling off. If there is peeling or rust, spray anti-rust paint or
apply anti-rust paste in time.
3. It is usually necessary to regularly check whether the
waterproof rubber ring of the cabinet is aging, deformed or
incomplete; whether the screws or locks of the sealing cabinet are
easy to loosen and the pressure is not enough.
4. Do not expose the copper wire outside the power terminal hole to
avoid short circuit or electric shock.
5. Outdoor LED display needs to rest for more than 2 hours a day,
and use it at least once a week during the rainy season. Turn on
the screen at least once a month for more than 2 hours.
Application:
Widely used for outdoor squares, stadiums, hotels, hospitals,
schools, shopping malls, supermarkets, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. Do you have any MOQ limit for led display order?
A: Low MOQ, 1pc for sample checking is available.
Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q4. What is your delivery time ,Can we receive our goods on time?
A: We offer fast lead time, usally 1-2 days if on stocks , 15--25
days if out of stocks. Please contact us for a accurate delivery
date in advance.
Q5. If I broad the market, can I be your agents?
A: Yes, we want to build relationship with all local powerful
distributor service is good for support you do long time local
service to win customer. Our price and quality can give our
customer more profit.
