C Series -- Showtechled Outdoor Large Mesh LED Display High Transparency High Brightness Curtain Advertising LED Screen

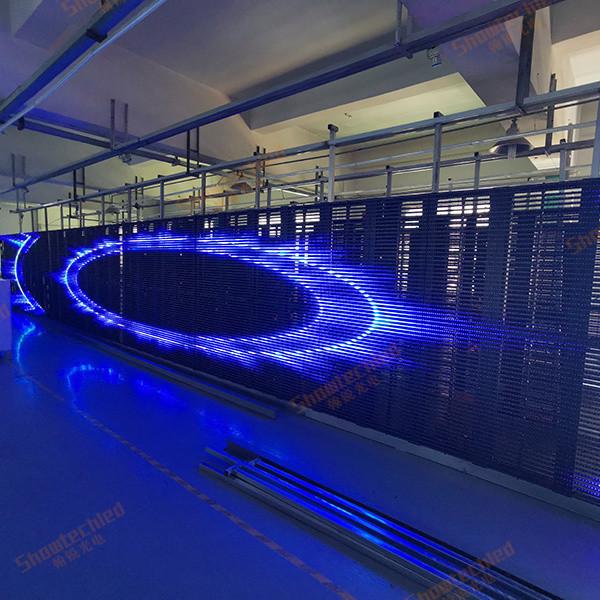

(1) Description Outdoor Large Mesh with High Transparency and High Brightness Curtain Advertising LED Screen:
1. The brightness can reach to 8000-12,000nits. But it’s energy-saving as highly integrated, Max power consumption only 360W/sqm, Avg only 100W/sqm.
2. Our outdoor mesh screen is lighter, cabinet weight only 21Kg. and the wind load is much smaller.
3. Easy for installation, no air conditioning, front/rear installation & maintenance. Support full front service.

(2) Quick Detail:

● Cabinet Marerial: Aluminum

● Brightness: 12,000cd/㎡

● Viewing angle: 120°(horz.), 60° (vert.)

● Transparency Rate: 50%

● Max Power Consumption: 390W/㎡

● Avg Power Consumption: 120W/㎡

● Maintenance type: Front / Back Maintenance

● IP Rating(Front/Rear): IP65/IP65

(3) Specifications:

Notices:
1. Check the circuit and switch of the LED screen, keep the switch dry, and avoid leakage and electric shock accidents.
2. The power supply should be stable, and the grounding protection should be good. Regularly check the reliability of the lightning rod and grounding system.
3. When installing and disassembling the product, please disconnect the power supply to avoid electric shock.
4. Be sure to connect the wires correctly, do not connect the wrong wires.
5. Outdoor LED displays exposed to outdoor environments for a long time are easily contaminated with dust. It can be wiped with alcohol, or dusted with a brush or a vacuum cleaner, but cannot be wiped directly with a damp cloth.

Application:

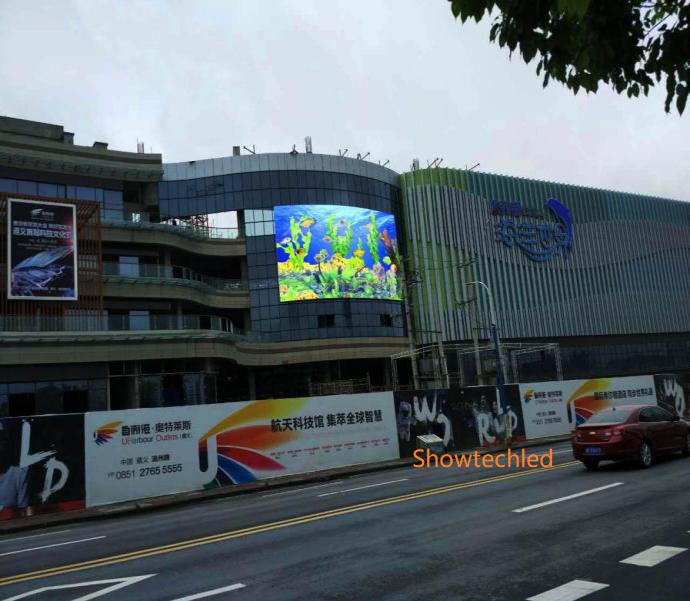

Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.

FAQ:

Q1: Are you the manufacturer or trading company? and where is your factory?

A: We are professional manufacturer devote in producing Led outdoor, Led indoor display, rental display, stadium screen,advertising screen and stage screen etc. You are warmly welcome to visit our factory to learn the technical and maintenance skillsand everything you need in our factory.

Q2: May be we will need some samples, what is the lead time of samples and lead time of order?

A: We will arrange your sample of the Payment within 7 days and arrange your order within 15-30 days after receiving your Payment

Q3: How could us arrange order?

A: pls send your inquiry to us--click the "send" in below, then let us confirm all details, you can click "start order" in above,or we send you order link for your payment.
