R5O Series -- Showtechled Outdoor Waterproof Advertising LED Screen
HD Rental Stage Video Wall LED Display

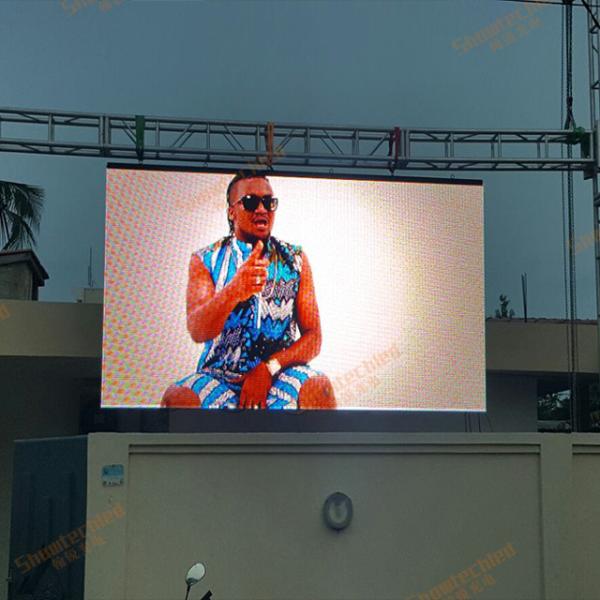

(1) Description of Outdoor Waterproof Advertising LED Screen:
1. Ultra-light one cabinet weight is only 12.8kg,single can be
single handed,installation is very easy.
2. Ultra-thin -the box is made of die-cast aluminum,high
strength,strong toughness,high precision,not easy to deform,saving
labor.
3. Anti-interference,a special anti-electromagnetic interference
function.
4. High precision,one cabinet after CNC machining, the size is
electromechanical processing to 0.1mm,can be seamlessly spliced.
(2) Quick Detail:
Pixel Pitch: 2.976mm
Module Size: 250(W)*250(H)mm
Cabinet Size: 500(W)*1000(H)*85(D)mm
Cabinet Material: Die-cast aluminum
Brightness: 4500cd/㎡
Refresh Rate: 3840Hz
(3) Specifications:
| Module Parameter |
| 1 | Item | R5O-2.9L |
| 2 | Pixel Pitch | 2.97mm(H*V) |
| 3 | Pixel density | 112896 dots/㎡ |
| 4 | LED configuration | SMD1415 |
| 5 | Module size | 250(W)×250(H)mm |
| 6 | Module resolution | 84(W)x84(H) |
| 7 | Scanning Mode | 1/21 Scan |
| 8 | IC model | ICN2153 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 168 (W)x336(H) |
| 2 | Cabinet size | 500(W)×1000(H)×85(D)mm |
| 3 | Cabinet weight | 12.8kg |
| 4 | Brightness | 4500cd/㎡ |
| 5 | Viewing angle | 160°(horz.), 160° (vert.) |
| 6 | Optimal View Distance | 2.9m |
| 7 | Gray scale | 15bit |
| 8 | Max Power Consumption | 650W/㎡ |
| 9 | Avg Power Consumption | 217W/㎡ |
| 10 | Work Voltage | AC200-240V |
| 11 | Frame Frequency | 60Hz |
| 12 | Refresh rate | 3840HZ |
| 13 | Operation System | Win7&XP |
| 14 | Control Mode | Synchronization with PC |
| 15 | Operating Temperature | ( -20℃～+50℃ ) |
| 16 | IP Rating(Front/Rear) | IP65/IP54 |
| 17 | Installation / maintenance type | Hanging/Landing installation
Rear maintenance |
| 18 | Life Span | 100,000Hours |
Notices:
1. Check the circuit and switch of the LED screen, keep the switch
dry, and avoid leakage and electric shock accidents.
2. When the LED display with more than the specified humidity is
powered on, it will cause corrosion of parts and even short-circuit
and cause permanent damage.
3. During the rainy season, the LED screen display is guaranteed to
be used at least once a week, and it is lit for at least 2 hours
each time.
4. The use environment of outdoor LED displays is complex, and it
is inevitable that there will be water seepage in the box. In
addition to the above measures, it is usually necessary to
regularly check whether the waterproof rubber ring of the box body
is aging, deformed or incomplete; whether the screws or locks of
the sealing box body are easy to loosen and the pressure is not
enough.
Application:
It is applicable for all of occasions such as exhibition display
stage performance entertainment activities, government conference
and various of commercial conferences,etc.
FAQ:
Q1: Who Are We?
A: Showtechled has 20,000sqm high-tech automated workshop, 200
employees,15 research engineers,20 after-sale technicians,5000sqm
productivity each month.
Q2: What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
Q3: Why Should You Buy From us Not From Other Suppliers?
A: After the 18 years' development, Shenzhen Showtechled Co., Ltd
has accumulated rich experience of R&D and has the first-class
automated production equipment, standard clean automation
production plant and anti-static system devices.
Q5: What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back
to Shenzhen.
