FB Series -- Showtechled Outdoor Waterproof 90 Degree Advertising
LED Display Fixed Billboard LED Screen
(1) Description of Outdoor Waterproof HD Advertising LED Display:
1. Use aluminum material, Much lighter, stronger, and more stable,
the cabinet is only 22kg and the protection grade is IP65.
2. With DIP lamp solution, the brightness can be much higher while
the power consumption will be much lower.

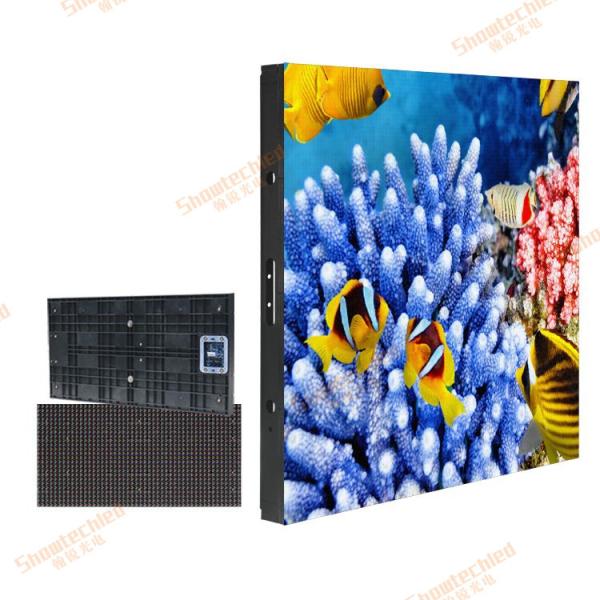

3. Excellent size and ultra-thin design: FB series cabinet size is
1000*1000mm, module size is 500*250mm. The screen size can be
measured in multiples of one square meter. Easy for transportation
and installation.
(2) Quick Detail:
● Cabinet Weight: 20kg
● Cabinet thickness: 85mm
● LED configuration: DIP346
● Cabinet materials: Aluminum
● Brightness: 7500nits
● Max Power Consumption: 390W/㎡
● Avg Power Consumption: 130W/㎡
● Refresh rate: 3840Hz
● 90°right Angle splicing function: do naked eye 3D display
● Maintenance type: Front / Back Maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item | FB10D |
| 2 | Pixel Pitch | 10.41mm(H*V) |
| 3 | Pixel density | 9216 dots/㎡ |
| 4 | LED configuration | DIP346 |
| 5 | Module size | 500(W)×250(H)*16(D)mm |
| 6 | Module resolution | 48(W)x24(H) |
| 7 | Scanning Mode | 1/3 Scan |
| Cabinet Parameter |
| 1 | Cabinet resolution | 96(W)x96(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×85(D)mm |
| 3 | Cabinet materials | Aluminum |
| 4 | Cabinet weight | 22kg |
| 5 | Brightness | 7500cd/㎡ |
| 6 | Viewing angle | 120°(horz.), 60° (vert.) |
| 7 | Optimal View Distance | 10.4m |
| 8 | Gray scale | 14bit |
| 9 | Max Power Consumption | 390W/㎡ |
| 10 | Avg Power Consumption | 130W/㎡ |
| 11 | Work Voltage | AC200-240V |
| 12 | Frame Frequency | 60Hz |
| 13 | Refresh rate | 3840HZ |
| 14 | Operation System | Win7&XP |
| 15 | Control Mode | Synchronization with PC |
| 16 | Operating Temperature | ( -40℃～+60℃ ) |
| 17 | IP Rating(Front/Rear) | IP65/IP54 |
| 18 | 90° right Angle splicing function | To do naked eye 3D display |
| 19 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
1. Open the package, check the product carefully, and handle it
with care to avoid damaging the product.
2. Check the circuit and switch of the LED screen, keep the switch
dry, and avoid leakage and electric shock accidents.
3. Regularly check whether the power and signal lines are broken or
bitten.
4. The power supply should be stable, and the grounding protection
should be good. Regularly check the reliability of the lightning
rod and grounding system.
5. Do not expose the copper wire outside the power terminal hole to
avoid short circuit or electric shock.
Application:
Widely used for outdoor squares, stadiums, hotels, hospitals,
schools, shopping malls, supermarkets, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. Do you have any MOQ limit for led display order?
A: Low MOQ, 1pc for sample checking is available.
Q3. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q5. If I broad the market, can I be your agents?
A: Yes, we want to build relationship with all local powerful
distributor service is good for support you do long time local
service to win customer. Our price and quality can give our
customer more profit.
