FB Series -- Showtechled Outdoor Advertising LED Display Fixed
Digital Billboard Lightweight LED Screen
(1) Description of Outdoor Fixed Advertising LED Display:
1. Use aluminum material, much lighter, stronger, and more stable,
the cabinet is only 19kg and the protection grade is IP65.
2. Modules, receiving cards, power supply, cabinet, all the parts
can be realized front maintenance, not merely modules.

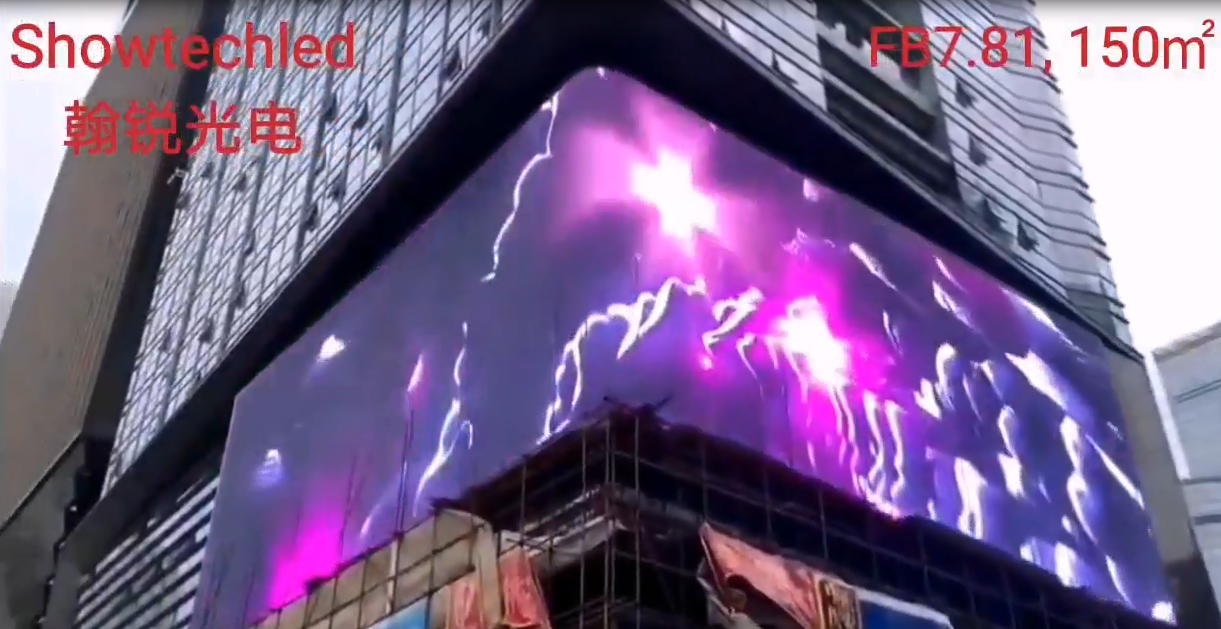

3. Outdoor Naked Eye 3D LED Display Billboard for Advertisement for
Shops & shopping malls to promote your products and brand quickly.
(2) Quick Detail:
● Cabinet Weight: 20kg
● Cabinet Materials: Aluminum
● Cabinet size: 1000(W)×1000(H)×76(D)mm
● Brightness: 6000nits
● Refresh rate: 3840Hz
● Operating Temperature: ( -40℃～+60℃ )
● 90°right Angle splicing function: do naked eye 3D display
● Maintenance type: Front / Back Maintenance
(3) Specifications:

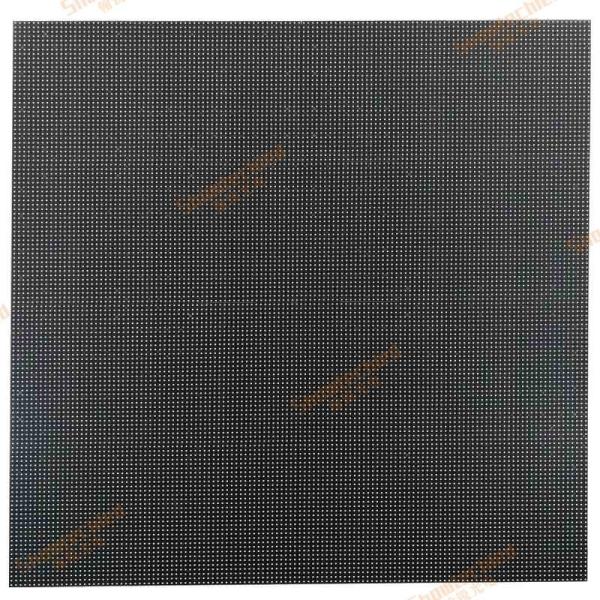

| Module Parameter |
| 1 | Item | FB7.8 |
| 2 | Pixel Pitch | 7.81mm(H*V) |
| 3 | Pixel density | 16384dots/㎡ |
| 4 | LED configuration | SMD2727 |
| 5 | Module size | 500(W)×250(H)*16(D)mm |
| 6 | Module resolution | 64(W)x32(H) |
| 7 | Scanning Mode | 1/4 Scan |
| Cabinet Parameter |
| 1 | Cabinet resolution | 128(W)x128(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×76(D)mm |
| 3 | Cabinet materials | Aluminum |
| 4 | Cabinet weight | 20kg |
| 5 | Brightness | 6000cd/㎡ |
| 6 | Viewing angle | 160°(horz.), 160° (vert.) |
| 7 | Optimal View Distance | 7.8m |
| 8 | Gray scale | 14bit |
| 9 | Max Power Consumption | 750W/㎡ |
| 10 | Avg Power Consumption | 250W/㎡ |
| 11 | Work Voltage | AC200-240V |
| 12 | Frame Frequency | 60Hz |
| 13 | Refresh rate | 3840HZ |
| 14 | Operation System | Win7&XP |
| 15 | Control Mode | Synchronization with PC |
| 16 | Operating Temperature | ( -40℃～+60℃ ) |
| 17 | IP Rating(Front/Rear) | IP65/IP54 |
| 18 | 90° right Angle splicing function | To do naked eye 3D display |
| 19 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
① Open the package, check the product carefully, and handle it with
care to avoid damaging the product.
② Check the circuit and switch of the LED screen, keep the switch
dry, and avoid leakage and electric shock accidents. ·
③ Regularly check whether the power and signal lines are broken or
bitten.
④ It is usually necessary to regularly check whether the waterproof
rubber ring of the cabinet is aging, deformed or incomplete;
whether the screws or locks of the sealing cabinet are easy to
loosen and the pressure is not enough.
Application:
Widely used for outdoor squares, stadiums, hotels, hospitals,
schools, shopping malls, supermarkets, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. Do you have any MOQ limit for led display order?
A: Low MOQ, 1pc for sample checking is available.
Q3. What is your shipping and packing way?
A: Our standard packing for modules are carton box and for the led
cabinet, we do wood box or flight case as per customers’ requests.
For the mass order ( fit for a container), generally we do shipment
by Sea.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
