FA Series -- Showtechled Outdoor Waterproof Football Stadium LED
Display HD Advertising Video LED Screen
(1) Description of Outdoor Waterproof Football Stadium LED Display:
1. Ultra-light
Die casting Magnesium alloy density is 2/3 of Alloy and 1/4 of
steel ,which makes the cabinet more light weight compare to same
size of steel and Aluminum cabinet .Its specific strength and
stiffness and also better than stell and aluminum alloy.
2. Ultra-thin
Easy to shape up a product by magnesium alloy , which can make
high-end, thin products and make the cabinet thickness thinner
3. Excellent vibration absorption
For example , in stress level 35MPa,magnesium alloy AZ91D
attenuation coefficient is 25%,Aluminum alloy is only 1%in stress
level 100MPa ,Magnesium alloy AZ91D,AM60,AS41 is 53%,72% and70%,
Aluminum alloy A380 is only 4%.Magnesium alloy is good for noise
reduction.
4. Dimension stable
Temperature and time variation have less effect on the instability
og Magnesium alloy die casting product , which have higher
precision after CNC process.
5. Excellent heat dissipation
Fasting cooling--excellent heat dissipation performance to protect
the modular circuit.
6. Excellent heat property
Compare to other material ,Magnesium alloy heave better radiation
protection and anti-interference capacity , make sure the screen
works well.
(2) Quick Detail:
Pixel Pitch: 5mm
LED configuration: SMD1921
Brightness: 5500cd/㎡
Viewing angle: 120°(horz.), 120° (vert.)
Place of Origin: Shenzhen,China
Life Span: 100,000Hours
(3) Specifications:
| Module Parameter |
| 1 | Item | FA5 |
| 2 | Pixel Pitch | 5mm |
| 3 | Pixel density | 40000dots/㎡ |
| 4 | LED configuration | SMD1921 |
| 5 | Module size | 320(W)×160(H)×19(D)mm |
| 6 | Module resolution | 64(W)x32(H) |
| 7 | Module weight | 0.5Kg |
| 8 | Scanning Mode | 1/8 |
| 9 | IC model | ICN2153 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 192(W)x192(H) |
| 2 | Cabinet size | 960(W)×960(H)×134(D)mm |
| 3 | Cabinet material | Die casting magnesium alloy |
| 4 | Cabinet weight | 25kg |
| 5 | Module number | 3*6 |
| 6 | Brightness | 5500cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 5m-50m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 780W/㎡ |
| 11 | Avg Power Consumption | 260W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+60℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP54 |
| 19 | maintenance type | back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
1. Regularly inspect whether the anti-corrosion and anti-rust paint
on the surface of the product and steel structure welding points is
peeling off. If there is peeling or rust, spray anti-rust paint or
apply anti-rust paste in time.
2. Regularly check whether the power and signal lines are broken or
bitten.
3. The power supply should be stable, and the grounding protection
should be good. Regularly check the reliability of the lightning
rod and grounding system.
4. It is usually necessary to regularly check whether the
waterproof rubber ring of the cabinet is aging, deformed or
incomplete; whether the screws or locks of the sealing cabinet are
easy to loosen and the pressure is not enough.

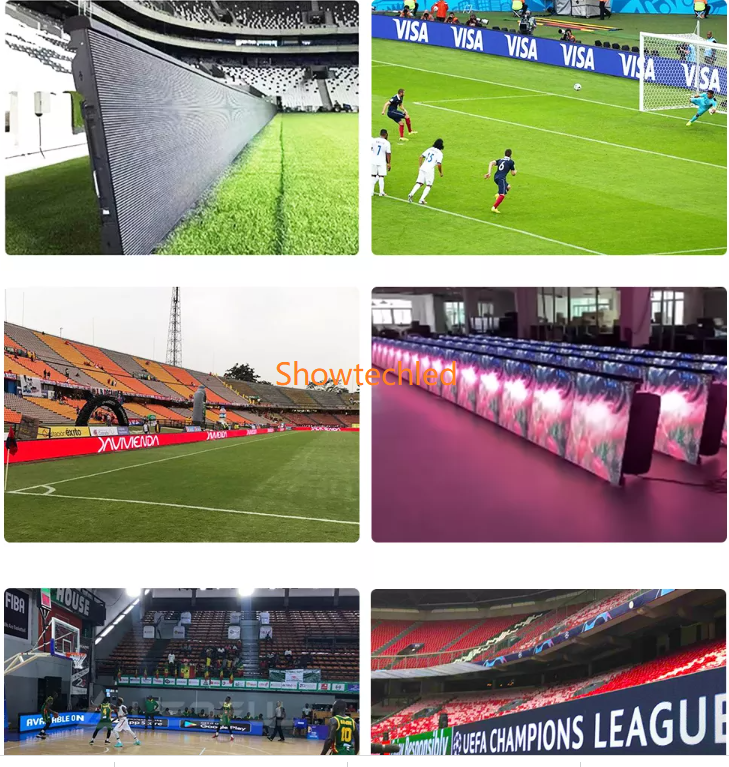

Application:
Widely used in outdoor squares, stadiums and other physical
activity.
FAQ:
Q1. Is the product customizable?
A: Yes, we can customize the product according to customers' needs,
you just need to provide the requirements details.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3. How about your delivery time?
A: Generally, it will takes about 10-15 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
Q5. What is your terms delivery?
A: EXW, FOB, CFR, CIF, DDP, DDU etc.
