R5O Series -- Showtechled Outdoor High Brightness Rental LED
Display Screen Video Wall Stage LED Screen
(1) Description of Ourdoor Waterproof High Brightneww Rental LED
Display:
1. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person
without tool.
4. Humanized operating interface with breakdown indicator lights,
easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving
the debugging technology for nice image.
(2) Quick Detail:
Pixel Pitch: 2.976mm
Pixel Density: 112896 dots/㎡
Module Size: 250mm*250mm
Brightness: 4500cd/㎡
Refresh Rate: 3840Hz
IP Rating(Front/Rear): IP65
(3) Specifications:
| Module Parameter |
| 1 | Item | R5O-2.9L |
| 2 | Pixel Pitch | 2.97mm(H*V) |
| 3 | Pixel density | 112896 dots/㎡ |
| 4 | LED configuration | SMD1415 |
| 5 | Module size | 250(W)×250(H)mm |
| 6 | Module resolution | 84(W)x84(H) |
| 7 | Scanning Mode | 1/21 Scan |
| 8 | IC model | ICN2153 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 168 (W)x336(H) |
| 2 | Cabinet size | 500(W)×1000(H)×85(D)mm |
| 3 | Cabinet weight | 12.8kg |
| 4 | Brightness | 4500cd/㎡ |
| 5 | Viewing angle | 160°(horz.), 160° (vert.) |
| 6 | Optimal View Distance | 2.9m |
| 7 | Gray scale | 15bit |
| 8 | Max Power Consumption | 650W/㎡ |
| 9 | Avg Power Consumption | 217W/㎡ |
| 10 | Work Voltage | AC200-240V |
| 11 | Frame Frequency | 60Hz |
| 12 | Refresh rate | 3840HZ |
| 13 | Operation System | Win7&XP |
| 14 | Control Mode | Synchronization with PC |
| 15 | Operating Temperature | ( -20℃～+50℃ ) |
| 16 | IP Rating(Front/Rear) | IP65/IP54 |
| 17 | Installation / maintenance type | Hanging/Landing installation
Rear maintenance |
| 18 | Life Span | 100,000Hours |
Notices:
1. Check the circuit and switch of the LED display screen, keep the
switch dry, and avoid leakage and electric shock accidents.
2. Open the package, check the product carefully, and handle it
with care to avoid damaging the product. ;
3. Keep away from flammable materials, gas and dust;
4. When the LED display with more than the specified humidity is
powered on, it will cause corrosion of parts and even short-circuit
and cause permanent damage.

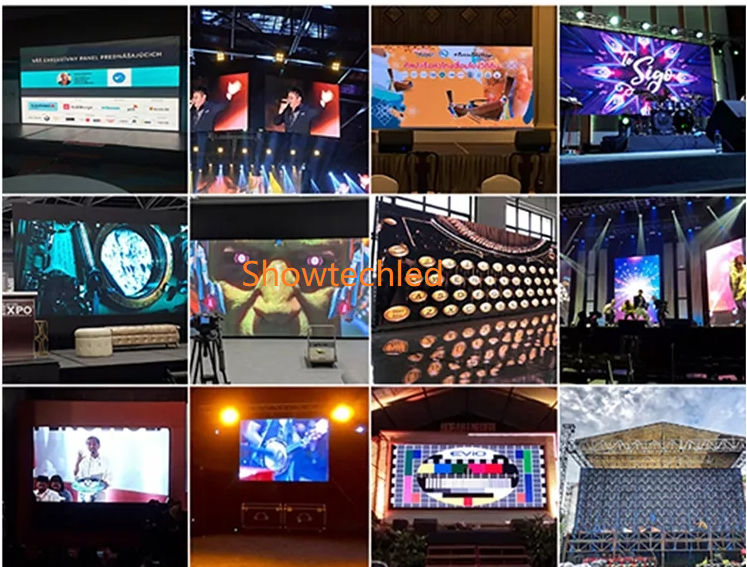

Application:
Stage,TV studio,concert,theme park, stage performance, live
events,clubs,halls,shop or exhibitions, conference etc.
FAQ:
Q1: How can I place an order?
A: Please tell us your requirement clearly, then we can send
quotation and suggestion to you. It is better to send us your
contact way, such as Whats app, Skype, E-mail and phone number, we
can negotiate with you in detail.
Q2: How do you ensure your product’s quality?
A: As a professional supplier of LED application products and
overall solutions, Unilumin is equipped with a large-screen display
and control system with the most advanced international technology.
Strict attitude, from production and package.
Q3: How to choose the right size or pixel LED screen?
A: You can tell us whether you are going to buy our products apply
for indoor or outdoor situation, specific place and viewing
distance, or other requirements. We will recommend some solutions
to you.
Q4: Can I customize the screen?
A: Yes, please inform us before production, some issues need time
to negotiate, such as the logo decision.
Q5: Do you support advance payment/deposit,and what payment method
your support?
A: A 30% deposit is required before production, and the rest is
paid before shipment. You can pay by T/T, Western Union, L/C etc.
