FB Series -- Showtechled Outdoor Fixed Energy Saving LED Display
Aluminum Cabinet Advertising LED Screen
(1) Description of Outdoor Fixed Energy Saving LED Display:
1. High brightness and energy saving, the brightness can reach
8000-8500cd/sqm. The average power consumption is only 60W/sqm.
2. Long service life. The benefits of such low power consumption
include:
1) Save a lot of electricity cost every year
2) Greatly increase the life span of LED display
3. High contrast, mask high brim design, greatly enhance the
contrast.
4. Long Warranty Period: we provide 5-year Warranty from confidence
in our products.
3. Low attenuation, constant color temperature, long use time
without color blocks, full vision and good color uniformity.
4. High protection level, IP65. Protect it from dust and water.
(2) Quick Detail:
Pixel Pitch: 7.81mm
Brightness: 8000cd/㎡
Cabinet Size: 1000*1000mm
Refresh rate: 3840Hz
Avg. Power Consumption: 60W
Maintenance type: Front/Rear maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item | FB7.8 |
| 2 | Pixel Pitch | 7.81mm(H*V) |
| 3 | Pixel density | 16384dots/㎡ |
| 4 | LED configuration | SMD2727 ( gold wire ) |
| 5 | Module size | 500(W)×250(H)*16(D)mm |
| 6 | Module resolution | 64(W)x32(H) |
| 7 | Scanning Mode | 1/4 Scan |
| 8 | IC model | MBI5123 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 128(W)x128(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×75(D)mm |
| 3 | Cabinet materials | Aluminum |
| 4 | Cabinet weight | 22kg |
| 5 | Brightness | 8000cd/㎡ |
| 6 | Viewing angle | 160°(horz.), 160° (vert.) |
| 7 | Optimal View Distance | 7.8m |
| 8 | Gray scale | 15bit |
| 9 | Max Power Consumption | 220W/㎡ |
| 10 | Avg Power Consumption | 60W/㎡ |
| 11 | Input power mode | Solar or mains electricity |
| 12 | Work Voltage ( Input) | DC24V or AC90-240V |
| 13 | Work Voltage ( Output) | DC4.5V |
| 14 | Frame Frequency | 60Hz |
| 15 | Refresh rate | 3840HZ |
| 16 | Operation System | Win7&XP |
| 17 | Control Mode | Synchronization with PC |
| 18 | Operating Temperature | ( -40℃～+60℃ ) |
| 19 | IP Rating(Front/Rear) | IP65/IP54 |

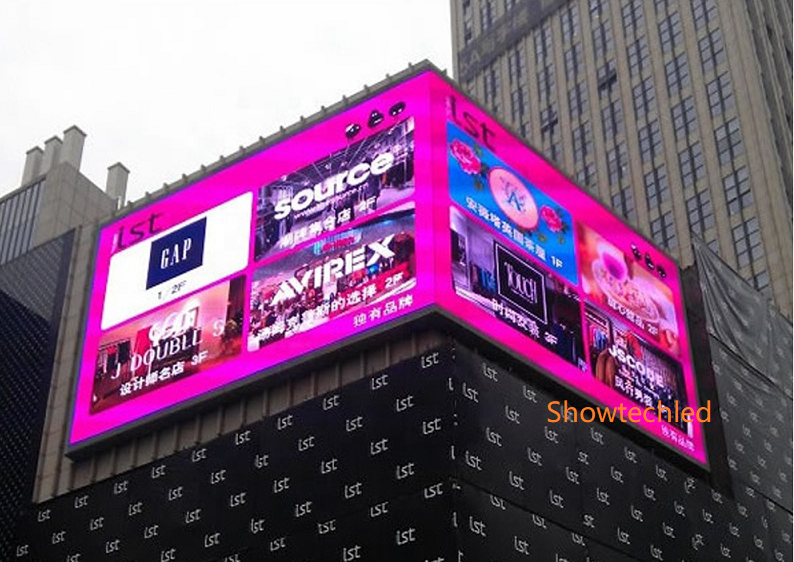

| 20 | 90° right Angle splicing function | To do naked eye 3D display |
| 21 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 22 | Product Certification | CE / EMC / FCC / ETL |
| 23 | Quality Warranty | 5 Years |
| 24 | Power supply | Meanwell HSP300-5 |
| 25 | Continuous operation time | 96Hours |
| 26 | Life Span | 100,000Hours |
Notices:
1. The installation and maintenance of the led screen must be
carried out by professionals.
2. If any abnormality such as short circuit, tripping, burning
wire, and smoke is found, the power-on test should not be repeated,
and the problem should be found in time.
3. Keep the power supply stable, and do a good job of grounding
protection to avoid lightning strikes, do not use it in harsh
natural conditions, especially strong lightning weather;
4. The time interval between switching on and off the screen should
be greater than 5 minutes
Application:
Widely used in buildings, factories, airports, stations, stadiums,
shopping malls and other places.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 15-25 days for Sample preparing ,25-35 working days for mass
production.
Q3. Do you have any MOQ limit for led display order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-15 days to arrive.
Airline and sea shipping also optional.
