FS Series -- Showtechled Indoor Curved Soft Flexible Video Wall LED
Screen Exhibition Shop Store Cylinder LED Display
(1) Description of Indoor Curved Soft Flexible Video Wall
Advertising LED Screen:

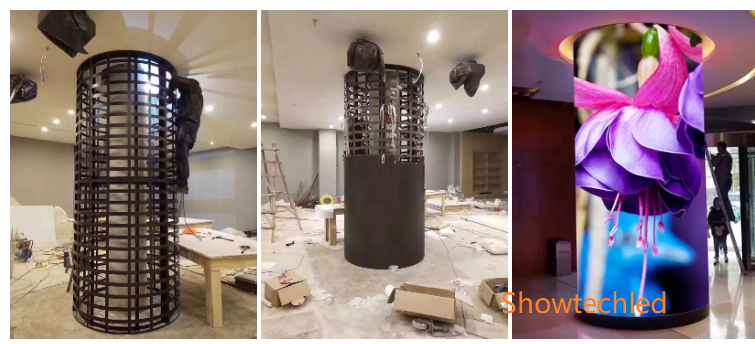

1. Flexible: according to customer needs, design rolling/bending
and swing and other effects, arbitrary surface, arbitrary splicing,
suitable for inner and outer arc, cylindrical screen, suitable for
artistic modeling.
2. Thin and light: using special materials and advanced technology,
ultra-thin and ultra-light.
3. Easy installation: strong magnetic adsorption type installation,
direct adsorption.
4. High quality, high brightness, low mortality.
(2) Quick Detail:
Pixel Pitch: 2.5mm
LED Configuration: SMD2020
Module Size: 240(W)*120(H)mm
Refresh Rate: 3840Hz
Maintenance Type: Front maintenance
Warranty: 2 Year
(3) Specifications:
| Module Parameter |
| 1 | Item | FS2.5 |
| 2 | Pixel Pitch | 2.5mm |
| 3 | Pixel density | 160000dots/㎡ |
| 4 | LED configuration | SMD2020 |
| 5 | Module size | 240(W)×120(H)×15(D)mm |
| 6 | Module resolution | 96(W)x48(H) |
| 7 | Module weight | 0.3Kg |
| 8 | Scanning Mode | 1/24 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 192(W)x288(H) |
| 2 | Cabinet size | 480(W)×720(H)×60(D)mm or customized |
| 3 | Cabinet material | Iron |
| 4 | Cabinet weight | 15kg |
| 5 | Module number | 2*6 |
| 6 | Brightness | 1000cd/㎡ |
| 7 | Viewing angle | 140°(horz.), 140° (vert.) |
| 8 | Optimal View Distance | 2.5m-25m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 600W/㎡ |
| 11 | Avg Power Consumption | 200W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -20℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
1.Open the package, check the product carefully, and handle it with
care to avoid damage to the product.
2.When installing and disassembling the product, please install it
carefully to avoid damaging the product, and please disconnect the
power supply to avoid electric shock.
3. Check the circuit and switch of the LED display screen, keep the
switch dry, and avoid leakage and electric shock accidents.
4. During the rainy season, the LED screen display is guaranteed to
be used at least once a week, and it is lit for at least 2 hours
each time.
Application:
Flexible LED panel can be used in so many fields and occasions,
especially in all kinds of irregular buildings. as hotel
advertising, stage renting television, shopping malls etc.
FAQ:
Q1: How to choose a led display?
A: You should consider 3 simple questions when you choose a led
screen by yourself.
1. What's the environment- indoor or outdoor ?
2. Is it for rental use ( need to be moved from one place to
another place frequently) or for fixed installation (to be
installed in a place permanently)?
3. What is the approximate size of the led screen you would like to
purchase?
Q2: Which pixel pitch should i choose?
A: There's a range of pixel pitch from 0.9375--31.25mm, there is a
roughly principle-usually small pixel(0.9375mm-5mm) used for indoor
led screen, bigger pixel (5mm-30mm) used for outdoor led screen(
for example huge advertisement billboard on a big building).
Q3: Which control system should i choose?
A: There are two kind of control systems on the market-synchronous
and asynchronous control system, And for big size led
screen(usually more than 20sqm) need to use synchronous control
system, below 20sqm it's up to you to use syn or asyn. But asyn
control system's refresh rate is much lower than sync control
system and which you can use wifi, 3G, 4G etc wireless to control.
Q4: How to order from us?
A: You can place an order by online or to our company directly
offline, before place an order please confirm with us for every
deta.
Q5: How to pay?
A: We accept payment online, or offline to our company account by
T/T,LC, western union etc.
