SI Series -- Showtechled Indoor Flexible LED Screen Customized LED
Creative Advertising Media Soft Display
(1) Description of Indoor Flexible LED Screen:
1. Customized: Can be customized according to the needs of the
project, diversified display modeling.
2. Easy Installation: With strong magnet, it's easy to assembly and
disassembly.
3. Large Viewing Angle: Fully show streamlined appearance, seamless
stitching.
4. Convenient installation: The magnet design can be assembled and
disassembled independently, and the operation is simple and
time-consuming.
(2) Quick Detail:
Pixel Pitch: 3mm
Module Size: 240(W)*120(H)mm
Screen Dimension: Customer request
Maintenance Type: Front maintenance
Refresh Rate: 3840Hz
Life Span: 100,000Hours
Brand Name: Showtechled
Place of Origin: Guangdong, China
(3) Specifications:
| Module Parameter |
| 1 | Item | SI 3 |
| 2 | Pixel Pitch | 3mm |
| 3 | Pixel density | 160000dots/㎡ |
| 4 | LED configuration | SMD2020 |
| 5 | Module size | 240(W)×120(H)×15(D)mm |
| 6 | Module resolution | 80(W)x40(H) |
| 7 | Module weight | 0.35Kg |
| 8 | Scanning Mode | 1/20 |
| 9 | IC model | ICN2038S |
| Cabinet Parameter |
| 1 | Cabinet resolution | 240(W)x240(H) |
| 2 | Cabinet size | 720(W)×720(H)×60(D)mm |
| 3 | Cabinet material | Iron |
| 4 | Cabinet weight | 18kg |
| 5 | Module number | 3*6 |
| 6 | Brightness | 1000cd/㎡ |
| 7 | Viewing angle | 140°(horz.), 140° (vert.) |
| 8 | Optimal View Distance | 3m-30m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 600W/㎡ |
| 11 | Avg Power Consumption | 200W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 1920Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -20℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
· Open the package, check the product carefully, and handle it with
care to avoid damage to the product.
· Be sure to connect the wires correctly, do not connect the wrong
wires.
· Do not expose the copper wire outside the power terminal hole to
avoid short circuit or electric shock.
· When installing and disassembling the product, please install it
carefully to avoid damaging the product, and please disconnect the
power supply to avoid electric shock.

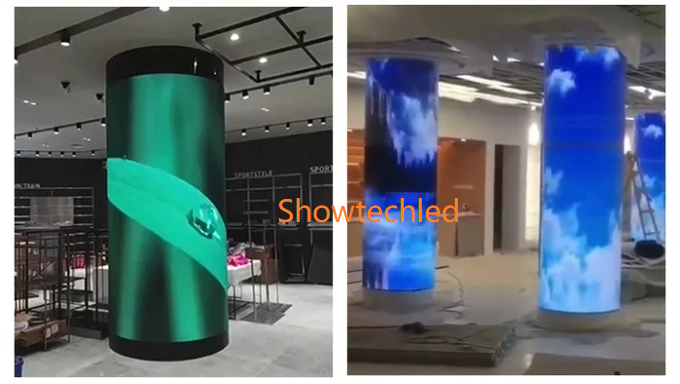

Application:
Widely used in airports, high-speed railway stations, railway
stations, shopping malls and various special-shaped places.
FAQ:
Q1. Can I have a sample order for this products?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Production time needs about 15 working days for order quantity
more than 6sqm.
Q3. Do you have any MOQ limit for LED screen order?
A: Low MOQ, 1pc for sample checking is available, and Normal
order's MOQ is 6pcs cabinet.
Q4. How do you ship the goods and how long does it take to arrive?
A: By express is the fastest but most expensive. By airplan also
need about 7 days , middle cost.By sea is the most economic but
will take 20-30 days transit time. Small order Express is a good
solution, Big order always by sea.
Q5. How to proceed an order for LED screen?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our
suggestions.
Thirdly, customer confirms the samples and places deposit for
formal order.
Fourthly, We arrange the production.
