    Outdoor Fixed 15.6x15.6mm Mesh LED Display Video Wall Advertising Large Grille

    Ask Lasest Price
    Brand Name : Showtechled
    Model Number : C Series-C1515
    Certification : CE/FCC/ETL/EMC
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 10000sqm/month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

    Outdoor Fixed 15.6x15.6mm Mesh LED Display Video Wall Advertising Large Grille

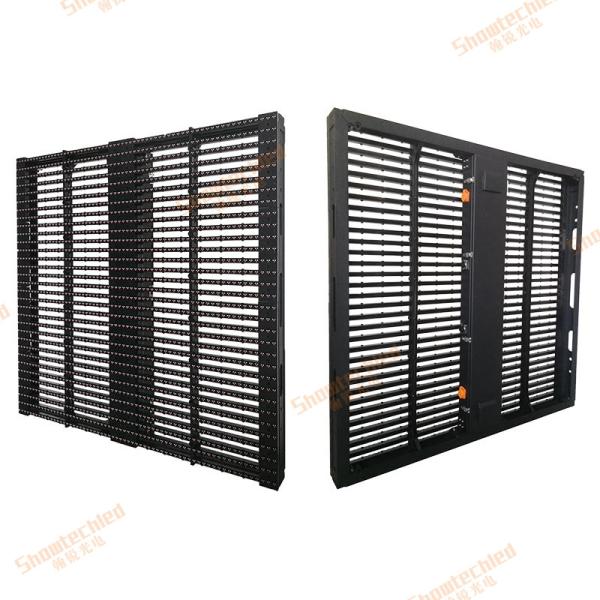

    C Series -- Showtechled Outdoor Fixed Mesh LED Display Video Wall Advertising Large Grille LED Screen

    (1) Description of Outdoor Wall HD Advertising Mesh LED Display:

    High transparency, cabinet lightness and thinness are the biggest features of this product, which can be installed on conventional walls or glass curtain walls, and does not require complicated steel structures, and has good wind resistance. In addition, the standard 1*1m cabinet is easy for transportation and installation, which can save much cost for steel structure.

    (2) Quick Detail:

    ● High transparency: 41%

    ● Cabinet Weight: 19kg

    ● Brightness: 5500cd/㎡

    ● Gray scale: 14(bit)

    ● Refresh rate: 3840Hz

    ● Installation / maintenance type: Front / Back Service

    ● Place of Origin: Shenzhen,China

    ● Operating Temperature: ( -40℃~+50℃ )

    ● IP Rating(Front/Rear): IP65/IP65

    ● 2 Year Warranty


    (3) Specifications:

    Module Parameter
    1ItemC1515
    2Pixel Pitch15.6x15.6mm(H*V)
    3Pixel density4096dots/㎡
    4LED configurationSMD2727
    5Module size500(W)×250(H)×25(D)mm
    6Module resolution32(W)x16(H)
    7Scanning ModeStatic
    Cabinet Parameter
    1Cabinet resolution64(W)x64(H)
    2Cabinet size1000(W)×1000(H)×80(D)mm
    3Cabinet weight19kg
    4Cabinet marerialAluminum
    5Transparency Rate41%
    6Brightness5500cd/㎡
    7Viewing angle160°(horz.), 160° (vert.)
    8Optimal View Distance15m
    9Gray scale14(bit)
    10Max Power Consumption850W/㎡
    11Avg Power Consumption283W/㎡
    12Work VoltageAV190-260V
    13Frame Frequency60Hz
    14Refresh rate3840Hz
    15Operation SystemWin7&XP
    16Control ModeSynchronization with PC
    17Operating Temperature( -40℃~+50℃ )
    18IP Rating(Front/Rear)IP65/IP65
    19Installation / maintenance typeFront / Back installation
    Front / Back maintenance
    20Life Span100,000Hours

    Notices:

    · Check the circuit and switch of the LED screen, keep the switch dry, and avoid leakage and electric shock accidents.

    · Regularly check whether the power and signal lines are broken or bitten.

    · It is usually necessary to regularly check whether the waterproof rubber ring of the cabinet is aging, deformed or incomplete; whether the screws or locks of the sealing cabinet are easy to loosen and the pressure is not enough.

    · Be sure to connect the wires correctly, do not connect the wrong wires.


    Application:

    Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.


    FAQ:

    Q1. Do you have any MOQ limit for led display order?

    A: Low MOQ, 1pc for sample checking is available.


    Q2. Is it OK to print my logo on led light product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Q3. What is your delivery time ,Can we receive our goods on time?

    A: We offer fast lead time, usally 1-2 days if on stocks , 15--25 days if out of stocks. Please contact us for a accurate delivery date in advance.


    Q4 . Do you offer guarantee for the products?

    A: Yes, we offer 2-5 years warranty to our products.
