    Fixed 880W/M2 P12.5 Grille LED Curtain Display Outdoor P12.5 Flexible LED Video Curtain

    Ask Lasest Price
    Brand Name : Showtechled
    Model Number : C Series-C1212
    Certification : CE/FCC/ETL/EMC
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 10000sqm/month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

    Fixed 880W/M2 P12.5 Grille LED Curtain Display Outdoor P12.5 Flexible LED Video Curtain


    C Series -- Showtechled Outdoor Fixed Waterproof Grille LED Curtain Display Transparent Advertising LED Screeen


    (1) Description of Ourdoor Fixed Waterproof Grille LED Curtain Display:

    Compared with other conventional cabinets, our outdoor mesh screen is lighter, and the wind load is smaller while the brightness is higher, but the power consumption is smaller. IP65 high waterprooof level. Easy for installation, no air conditioning, front/rear installation & maintenance. Support full front service.


    (2) Quick Detail:

    ● Lightweight Cabinet;

    ● High transparency: 42%

    ● Brightness: 6500cd/㎡

    ● Refresh rate: 3840Hz

    ● Viewing angle: 160°(horz.), 160° (vert.)

    ● Work Voltage: AV190-260V

    ● Place of Origin: Shenzhen,China

    ● Maintenance type: Front / Back Maintenance

    ● Life Span: 100,000Hours

    ● 2 Year Warranty


    (3) Specifications:

    Module Parameter
    1ItemC1212
    2Pixel Pitch12.5*12.5mm(H*V)
    3Pixel density6400dots/㎡
    4LED configurationSMD 3535
    5Module size500(W)*125(H)*25(D)mm
    6Module resolutions40(W)x10(H)
    7Scanning Mode1/2 Scan
    Cabinet Parameter
    1Cabinet resolutions80(W)*80(H)
    2Cabinet size1000(W)*1000(H)*80(D)mm
    3Cabinet weight18kg
    4Cabinet marerialAluminum
    5Transparency Rate42%
    6Brightness6500cd/㎡
    7Viewing angle160°(horz.), 160° (vert.)
    8Optimal View Distance12m
    9Gray scale15(bit)
    10Max Power Consumption850W/㎡
    11Avg Power Consumption250W/㎡
    12Work VoltageAV190-260V
    13Frame Frequency60Hz
    14Refresh rate3840Hz
    15Operation SystemWin7&XP
    16Control ModeSynchronization with PC
    17Operating Temperature( -40℃~+60℃ )
    18IP Rating(Front/Rear)IP65/IP65
    19Installation / maintenance typeFront / Back installation
    Front / Back maintenance
    20Life Span100,000Hours

    Application:

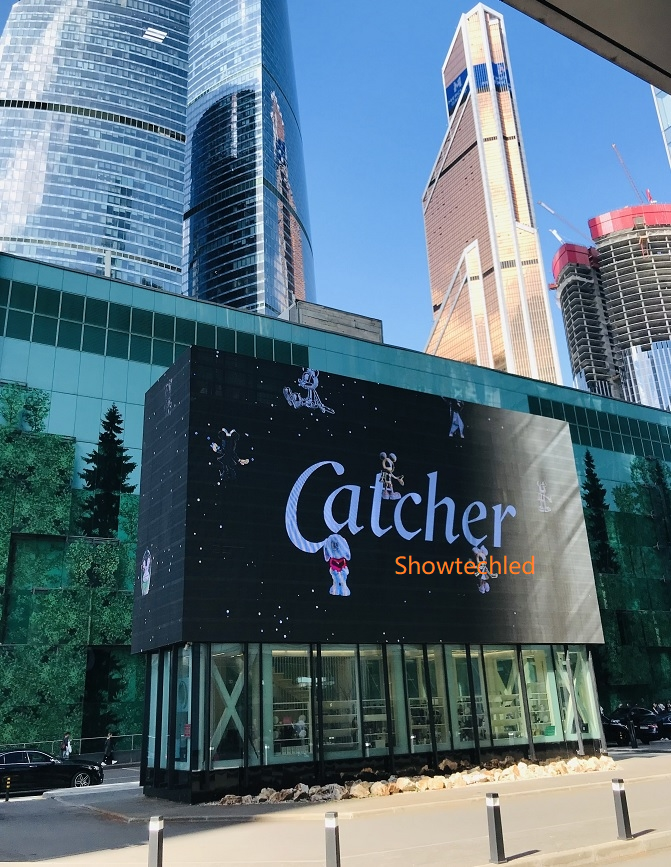

    Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, etc.


    FAQ:

    Q1. What about the lead time?

    A: 15-25 days for Sample preparing ,25-35 working days for mass production.


    Q2. Do you have any MOQ limit for led display order?

    A: Low MOQ, 1pc for sample checking is available.


    Q3. Can I have a sample order for led display?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
