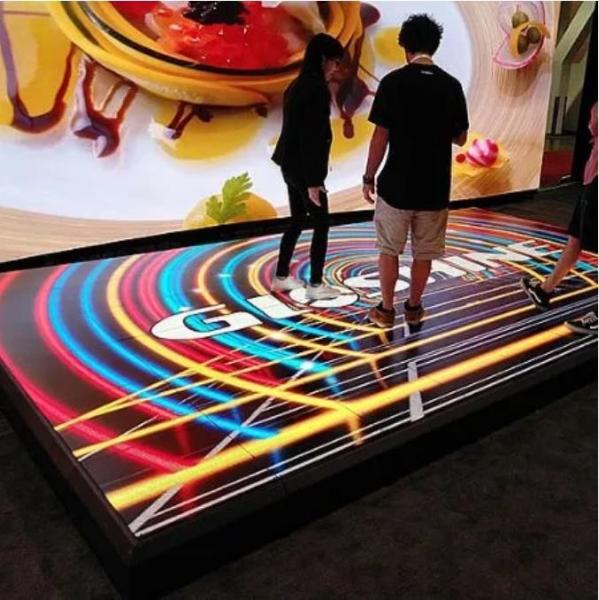

P4.81 Indoor Full Color Screen Interactive LED Wall Dance Floor LED
Display Screen
HD Full Color Outdoor P4.81 Interactive Shopping Mall P3.91 Dance
Floor Tiles Led Stage Show Floor Screen
(1) Quick Detail:
Pixel Pitch:4.81mm
LED Configuration:SMD1921
Brightness:2500cd/㎡
Cabinet Size:500*1000mm
Maintenance Type: Front maintenance
Life span:100,000 hours
(2) Description:
1) Floor tile screen with built-in sensor system:Can follow the
human activity to present the picture Enhance the sense of
immersion and active participation Like opening a unique journey of
interactive display magic.
2) Module using high-quality novastar led, high refresh control IC,
Mask is made of high-density alkaline PC material, anti-stepping,
anti-scratch, anti-fire retardant,The surface is treated with
frosting technology, anti-slip, anti-scratch and anti-glare.
3)Use advanced gluing technology, with the sealing silicone rubber
ring, perfect for dust proof and waterproof,UV-resistant
technology, even after years of sunlight, can still maintain the
original color,Without any screw holes, so it can be mopped and
cleaned directly.
4) Strictly waterproof, IP66 protection level,Each screen strictly
waterproof tested before delivery,The display is reliable and
stable in a harsh environments.
5) High Loading Weight:Load-bearing capacity of 2T per sqm,
Can be directly stepped on, run over by cars, high staggering
shoes, etc.
(3)Specifications:
Module Parameter |
1 | Item | FL4.8 |
2 | Pixel Pitch | 4.81mm |
3 | Pixel density | 43264dots/㎡ |
4 | LED configuration | SMD1921 |
5 | Module size | 250(W)×250(H)×15(D)mm |
6 | Module resolution | 52(W)x52(H) |
7 | Module weight | 0.65Kg |
8 | Scanning Mode | 1/13 |
9 | IC model | MBI5124 |
Cabinet Parameter |
1 | Cabinet resolution | 104(W)x208(H) |
2 | Cabinet size | 500(W)×1000(H)×80(D)mm |
3 | Cabinet material | Iron |
4 | Cabinet weight | 25kg |
5 | Module number | 2*4 |
6 | Brightness | 2500cd/㎡ |
7 | Viewing angle | 140°(horz.), 140° (vert.) |
8 | Optimal View Distance | 4.8m-48m |
9 | Gray scale | 14(bit) |
10 | Max Power Consumption | 880W/㎡ |
11 | Avg Power Consumption | 294W/㎡ |
12 | Work Voltage | AC190-264V |
13 | Frame Frequency | 60Hz |
14 | Refresh rate | 1920Hz |
15 | Operation System | Win7&XP |
16 | Control Mode | Synchronization with PC |
17 | Operating Temperature | ( -20℃～+60℃ ) |
18 | IP Rating(Front/Rear) | IP65/IP54 |
19 | maintenance type | Front maintenance |
20 | Life Span | 100,000Hours |
(4)Notes:
1. The LED display screen should be managed by full-time personnel;
non-professional personnel cannot operate the software system.
2. During the rainy season, the LED screen display is guaranteed to
be used at least once a week, and it is lit for at least 2 hours
each time.
3. If the LED display is not used for a long time, it should be
powered on for maintenance and debugging frequently. Whether it is
an indoor LED display or an outdoor LED display, if it is not used
for a long time, dead lights and blind spots may occur when it is
activated again. Therefore, it is necessary to power on and light
up the screen frequently for debugging.
4. Regularly check the firmness of the screen connection. If there
is any looseness, it should be adjusted in time. If necessary, it
can be re-reinforced or the hanger can be replaced.
(5)Application: Widely used in weddings, bars, shopping malls and
other events
(6)FAQ:
Q1:What quality certificates do you have?
A1:We have CE,RoHS,FCC,ETL,CB certificates.
Q2: How about the warranty?
A2:Warranty is 2 years.
Q3: How's your service?
A3: (1)Reply your inquiry in 24 working hours.
(2)Experienced staffs answer all your query in fluent English.
(3)Customized design is available.
Q4: What's the main market?
A4:We mainly exported to North America, South America and Europe.
We can also exported to other countries and rigions .
Q5: What's the deadline?
A5:Our production time is about 15 working days.
