C Series -- Outdoor Fixed Screen Led Glass Mesh Screen P15.625 Grille Screen
Outdoor High Brightness Transparent Led Screen
(1) Description of Outdoor Fixed Screen Led Glass Mesh Screen LED Display C1531:
1. High brightness: C1531 Mesh screen brightness is up to 12000
nits, Standard configuration is 8000 nits and it can reach up to
12000 nits with high brightness level LED lamp such DIP 349.
2. Super light and thin box, easy to transport, install and
maintain
3. Low power consumption, low heat, energy saving and environmental
protection
4. Stable signal and power supply, safe and reliable operation
5. High efficiency and stability, high reliability, long service
life

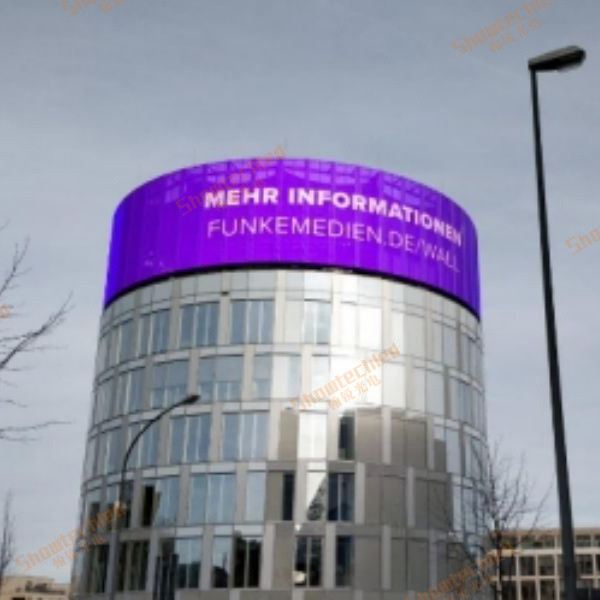

6.Supports right-angle or curved customization to meet the needs of
outdoor naked-eye 3D large screens
(2) Quick Detail:
Pixel Pitch:15.625x31.25mm(H*V)
Cabinet size:1000(W)×1000(H)×85(D)mm
Cabinet material: aluminum
Cabinet weight:19.5kg
Module size:500(W)×250(H)×25(D)mm
Refresh rate: 3840Hz
Brightness:12000cd/㎡
Maintenance type:Front/Rear maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item Name | C1531 |
| 2 | Pixel Pitch | 15.6x31.25mm(H*V) |
| 3 | Pixel density | 2048dots/㎡ |
| 4 | LED configuration | DIP349 |
| 5 | Module size | 500(W)×250(H)×25(D)mm |
| 6 | Module resolution | 32(W)x8(H) |
| 7 | Scanning Mode | Static |
| Cabinet Parameter |
| 1 | Cabinet resolution | 64(W)x32(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×85(D)mm |
| 3 | Cabinet materials | Aluminum |
| 4 | Cabinet weight | 19.5kg |
| 5 | Brightness | 12000cd/㎡ |
| 6 | Viewing angle | 160°(horz.), 160° (vert.) |
| 7 | Optimal View Distance | 15m |
| 8 | Gray scale | 14bit |
| 9 | Max Power Consumption | 360W/㎡ |
| 10 | Avg Power Consumption | 100W/㎡ |
| 11 | Work Voltage | AV190-260V |
| 12 | Frame Frequency | 60Hz |
| 13 | Refresh rate | 3840HZ |
| 14 | Operation System | Win7&XP |
| 15 | Control Mode | Synchronization with PC |
| 16 | Operating Temperature | ( -40℃～+50℃ ) |
| 17 | IP Rating(Front/Rear) | IP65/IP65 |
| 18 | 90° right Angle splicing function | To do naked eye 3D display |
| 19 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
(4) Notes:
1. Be sure to connect the wires correctly, do not connect the wrong
wires.
2. Do not expose the copper wire outside the power terminal hole to
avoid short circuit or electric shock.
3. During the rainy season, the LED screen display is guaranteed to
be used at least once a week, and it is lit for at least 2 hours
each time.
4. The use of outdoor LED displays is complex, and it is inevitable
that there will be water seepage in the cabinet. Usually, it is
necessary to regularly check whether the waterproof rubber ring of
the cabinet is aging, deformed or incomplete; whether the screws or
locks of the sealing box are easy to loosen and the pressure is not
enough, which affects the use.
(5) Application:
Widely used for outdoor squares, stadiums, hotels, hospitals,
schools, shopping malls, supermarkets, etc.
