20x20mm 600W/M2 Facade LED Screen Glass Transparent LED Window Display IP30

    Buy cheap 20x20mm 600W/M2 Facade LED Screen Glass Transparent LED Window Display IP30 from wholesalers

    Buy cheap 20x20mm 600W/M2 Facade LED Screen Glass Transparent LED Window Display IP30 from wholesalers
    • Buy cheap 20x20mm 600W/M2 Facade LED Screen Glass Transparent LED Window Display IP30 from wholesalers
    • Buy cheap 20x20mm 600W/M2 Facade LED Screen Glass Transparent LED Window Display IP30 from wholesalers
    • Buy cheap 20x20mm 600W/M2 Facade LED Screen Glass Transparent LED Window Display IP30 from wholesalers

    20x20mm 600W/M2 Facade LED Screen Glass Transparent LED Window Display IP30

    Ask Lasest Price
    Brand Name : Showtechled
    Model Number : C Series-CI2020
    Certification : CE/FCC/ETL/EMC
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 10000sqm/month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

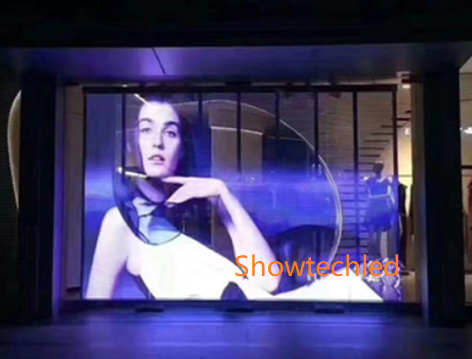

    20x20mm 600W/M2 Facade LED Screen Glass Transparent LED Window Display IP30


    C Series -- Showtechled Full Colour Indoor Transparent Glass LED Display Media Facade Advertising LED Screen

    (1) Description of Full Colour Indoor Transparent Media Facade Fasade Advertising LED Screen:

    1. Each Angle 160°, watching no dead Angle, no color bias, every side is wonderful.

    2. Unlimited by size and shape, to meet different size requirements, to achieve more creative display.

    3. Whole screen without any components, hidden power supply, safe and reliable.

    (2) Quick Detail:

    ● Cabinet size: 640(W)×1280(H)×80(D)mm

    ● Cabinet weight: 9.8KG

    ● Brightness: 2000-2500cd/㎡

    ● Refresh rate: 3840Hz

    ● Operating Temperature: ( -40℃~+60℃ )

    ● Maintenance type: Front / Back Maintenance

    ● IP Rating(Front/Rear): IP30


    (3) Specifications:

    Module Parameter
    1ItemCI-2020
    2Pixel Pitch20x20mm(H*V)
    3Pixel density2500dots/㎡
    4LED configurationSMD 1921
    5Module size320(W)×160(H)×8(D)mm
    6Module resolution16(W)x8(H)
    7Scanning Mode1/2 Scan
    Cabinet Parameter
    1Cabinet resolution32(W)x64(H)
    2Cabinet size640(W)×1280(H)×80(D)mm
    3Cabinet weight9.8 kg
    4Cabinet marerialIron
    5Transparency Rate52%
    6Brightness2000-2500cd/㎡
    7Viewing angle160°(horz.), 160° (vert.)
    8Optimal View Distance20m
    9Gray scale14(bit)
    10Max Power Consumption600W/㎡
    11Avg Power Consumption200W/㎡
    12Work VoltageAV190-260V
    13Frame Frequency60Hz
    14Refresh rate3840Hz
    15Operation SystemWin7&XP
    16Control ModeSynchronization with PC
    17Operating Temperature( -40℃~+60℃ )
    18IP Rating(Front/Rear)IP30
    19Installation / maintenance typeFront / Back installation
    Front / Back maintenance
    20Life Span100,000Hours

    Notices:

    • Regularly check whether the power and signal lines are broken or bitten.
    • The power supply should be stable, and the grounding protection should be good. Regularly check the reliability of the lightning rod and grounding system.
    • When installing and disassembling the product, please disconnect the power supply to avoid electric shock.
    • Do not expose the copper wire outside the power terminal hole to avoid short circuit or electric shock.
    • Be sure to connect the wires correctly, do not connect the wrong wires.

    Application:
    Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.


    FAQ:

    Q1: Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery.


    Q2: How about your delivery time?

    A: Generally, it will takes about 15-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


    Q3: What is your terms of payment?

    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
