C Series -- Showtechled Outdoor Waterproof Naked Eye 3D HD LED
Display Advertising Billboard LED Screen
(1) Description of Naked Eye 3D HD Advertising LED Display:
1. High transparency: C series meshscreen P15.625*31.25 has high
transparency of 50%;
2. Front&rear installation and maintenance: C series mesh can
be installed in a variety of outdoor environments because it can be
either front or rear installed and maintained; Modules, receiving
cards, power supply, cabinet, all the parts can be front
maintained, not merely modules.
3. Right-angled connection: The edges of modules and frame can be
designed to be 45 degrees, it is easier to make right-angled
connection. Between screens, right-angled stitching without gaps is

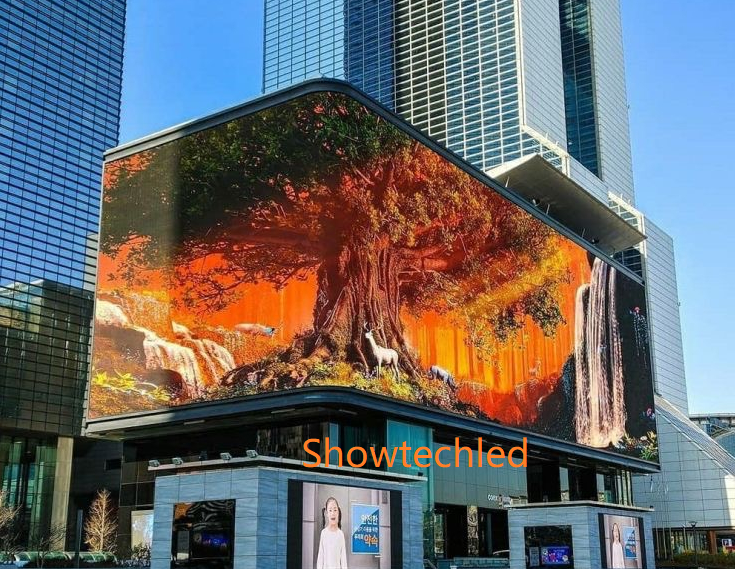

realized. This function can perfectly realize glasses-free 3D
display for users.
4. High refresh rate: Refresh can reach 3840Hz.
(2) Quick Detail:
Pixel Pitch: 15.625x31.25mm(H*V)
LED Configuration: DIP349
Module Size: 500*250mm
Cabinet size: 1000*1000mm
Cabinet Material: Aluminum
Brightness: 8000cd/㎡
Transparency Rate: 50%
Maintenance Type: Front/Back maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item | C1531 |
| 2 | Pixel Pitch | 15.6x31.25mm(H*V) |
| 3 | Pixel density | 2048dots/㎡ |
| 4 | LED configuration | DIP349 |
| 5 | Module size | 500(W)×250(H)×25(D)mm |
| 6 | Module resolution | 32(W)x8(H) |
| 7 | Scanning Mode | Static |
| 8 | IC model | ICN2038S |
| Cabinet Parameter |
| 1 | Cabinet resolution | 64(W)x32(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×85(D)mm |
| 3 | Cabinet weight | 20kg |
| 4 | Cabinet marerial | Aluminum |
| 5 | Transparency Rate | 50% |
| 6 | Brightness | 8000cd/㎡ |
| 7 | Viewing angle | 120°(horz.), 60° (vert.) |
| 8 | Optimal View Distance | 15m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 360W/㎡ |
| 11 | Avg Power Consumption | 100W/㎡ |
| 12 | Work Voltage | AV190-260V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP65 |
| 19 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
· Check the circuit and switch of the LED display screen, keep the
switch dry, and avoid leakage and electric shock accidents.
· The use of outdoor LED displays is complex, and it is inevitable
that there will be water seepage in the cabinet. Usually, it is
necessary to regularly check whether the waterproof rubber ring of
the box is aging, deformed or incomplete; whether the screws or
locks of the sealing box are easy to loosen and the pressure is not
enough to avoid danger.
· When installing and disassembling the product, please install it
carefully to avoid damaging the product, and please disconnect the
power supply to avoid electric shock.
· If the LED display is not used for a long time, it should be
powered on for maintenance and debugging frequently. Whether it is
an indoor LED display or an outdoor LED display, if it is not used
for a long time, dead lights and blind spots may occur when it is
activated again. Therefore, it is necessary to power on and light
up the screen frequently for debugging.
Application:

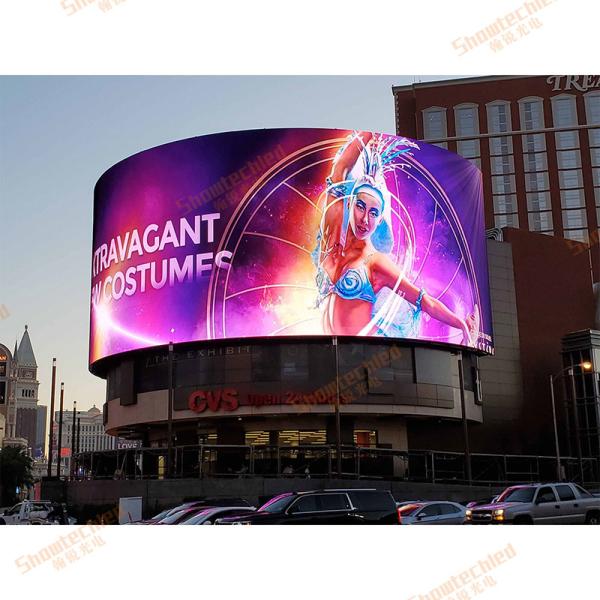

Applicable to major shopping malls, subway stations, bus stations,
high-speed rail stations and other places.
FAQ:
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs,
you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3: What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU etc.
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all
product here we offer 2 year at least warranty.
Q5: What kind of packaging you offer?
A: We provide carton, wooden case or flight case packaging, During
the packaging process, preventive measures will be taken by us to
assure that the goods are in a good condition during storage and
delivery.
