    10.41mm Naked Eye 3D LED Display Digital Screen For Outdoor Advertising 500 X 250mm

    Ask Lasest Price
    Brand Name : Showtechled
    Model Number : FB Series-FB10.41
    Certification : CE/FCC/ETL/EMC
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 10000sqm/month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

    10.41mm Naked Eye 3D LED Display Digital Screen For Outdoor Advertising 500 X 250mm


    FB Series -- Showtechled Outdoor Naked Eye 3D LED Display Digital Wall Advertising Billboard LED Screen

    (1) Description of Naked Eye 3D LED Display:
    1. Use aluminum material, More lighter, stronger, and more stable, the cabinet is only 19kg and the protection grade is IP65.
    2. Front&rear installation and maintenance: FB series can be installed in a variety of outdoor environments because it can be either front or rear installed and maintained; Modules, receiving cards, power supply, cabinet, all the parts can be realized front maintenance, not merely modules.
    3. Excellent size and ultra-thin design: FB series cabinet size is 1000*1000*75mm, module size is 500*250mm. The screen size can be measured in multiples of one square meter.
    4. High brightness : FB series brightness is up to 6000-8000 nits, Standard configuration is 6000nit and it can reach up to 8000 nits with high brightness level LED lamp.
    5. Outdoor Naked Eye 3D LED Display Billboard for Advertisement for Shops & shopping malls to promote your produce and brand quickly.


    (2) Quick Detail:
    Application: Outdoor Advertising
    Pixel Pitch: 10.41mm

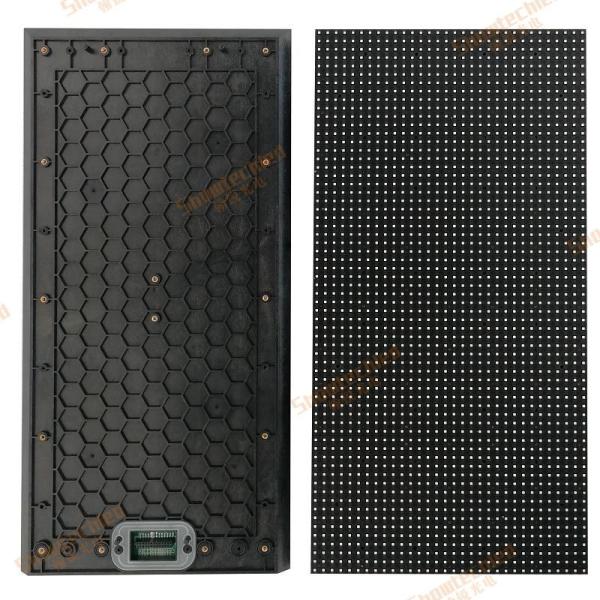

    Module Size: 500*250mm
    Cabinet size: 1000*1000mm
    Refresh rate: 3840Hz
    Maintenance type: Front/Back maintenance
    Right Angle splicing: Naked eye 3D effect
    Life span: 100,000 hours

    (3) Specifications:

    Module Parameter
    1ItemFB10.4
    2Pixel Pitch10.41mm(H*V)
    3Pixel density9216dots/㎡
    4LED configurationSMD3535
    5Module size500(W)×250(H)*16(D)mm
    6Module resolution48(W)x24(H)
    7Scanning Mode1/3 Scan
    Cabinet Parameter
    1Cabinet resolution96(W)x96(H)
    2Cabinet size1000(W)×1000(H)×76(D)mm
    3Cabinet materialsAluminum
    4Cabinet weight19kg
    5Brightness6500cd/㎡
    6Viewing angle160°(horz.), 160° (vert.)
    7Optimal View Distance10.4m
    8Gray scale14bit
    9Max Power Consumption750W/㎡
    10Avg Power Consumption250W/㎡
    11Work VoltageAC200-240V
    12Frame Frequency60Hz
    13Refresh rate3840HZ
    14Operation SystemWin7&XP
    15Control ModeSynchronization with PC
    16Operating Temperature( -40℃~+60℃ )
    17IP Rating(Front/Rear)IP65/IP54
    1890° right Angle splicing functionTo do naked eye 3D display
    19Installation / maintenance typeFront / Back installation
    Front / Back maintenance
    20Life Span100,000Hours


    Notes:
    · Open the package, check the product carefully, and handle it with care to avoid damage to the product.
    · Be sure to connect the wires correctly, do not connect the wrong wires.
    · Do not expose the copper wire outside the power terminal hole to avoid short circuit or electric shock.
    · When installing and disassembling the product, please install it carefully to avoid damaging the product, and please disconnect the power supply to avoid electric shock.

    Application:
    Applicable to major shopping malls, subway stations, bus stations, high-speed rail stations and other places.




    FAQ:
    Q1. What is the MOQ?
    A: 1pc panel.

    Q2. How to control the LED display?
    A: We use Novastar control system, supports WIFI/LAN/USB/4G wireless control.

    Q3. Can you provide installation structures?
    A: Yes, we can provide installation structures for wall-mounted, pillar-mounted.

    Q4. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery.

    Q5. How long is your warranty?
    A: 2 years, we will be responsible for free repairment or replacement for defective parts.
