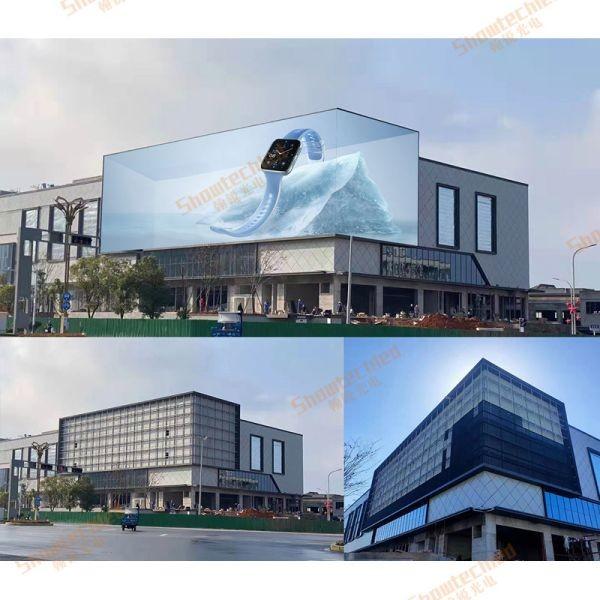

C Series -- Showtechled Naked Eye 3D High Definition Screen P15.625 High Transparency Screen Billboard Outdoor Advertising

(1) Description of Naked Eye 3D LED Display:

1.3840Hz high refresh rate, add your 3D video source can make an amazing naked-eye 3D outdoor led display;

2.Can make 90 degree angle or small radian curved led during the connection of the screen;

3.High transparency: C series meshscreen P15.625*31.25 has high transparency of 50%;

4.Front&rear installation and maintenance: C series mesh can be installed in a variety of outdoor environments because it can be either front or rear installed and maintained; Modules, receiving cards, power supply, cabinet, all the parts can be front maintained, not merely modules.

(2) Quick Detail:

Pixel Pitch: 15.625x31.25mm(H*V)

LED Configuration: DIP349

Module Size: 500*250mm

Cabinet size: 1000*1000mm

Brightness: 8000cd/㎡

Transparency Rate: 50%

Maintenance Type: Front/Back maintenance

(3) Specifications:

Notes:

1. The LED module is powered by DC +5V (working voltage: 4.2~5.2V), and it is forbidden to use AC power supply; the positive and negative poles of the power terminals are strictly forbidden to be reversed (note: once reversed, the product will burn out and even cause a serious fire) ;

2. Power supply voltage of LED display: 220V±10% Frequency: 50HZ±5%;

3. Safe and reliable contact with the ground, reliable isolation between the ground wire and the neutral wire, and keep the power supply away from high-power backup;

4. If any abnormality such as short circuit, tripping, burning wire, and smoke is found, the power-on test should not be repeated, and the problem should be found in time;

Application:

Applicable to major shopping malls, subway stations, bus stations, high-speed rail stations and other places.

FAQ:

Q1: Is the product customizable?

A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.

Q2: Do you test all your goods before delivery?

A: Yes,we have 100% test before delivery.

Q3: What is your terms delivery?

A: EXW,FOB, CFR, CIF, DDP, DDU etc.

Q4: How about your warranty?

A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty.
