FS Series -- Showtechled Special Shaped Indoor Customized Soft
Flexible LED Display 360 Degree Arc LED Screen
(1) Description of Special Shaped Indoor Customized Soft Flexible
LED Display:
1. Flexible module size: 240*120mm and 320*160mm for choice;
2. Frame Structure can be customized as customer request.
3. High Performance IC:High-performance IC driver chip, stable
quality and long service life.
4. Can be hoisted, vertical installation, hanging and so on.
(2) Quick Detail:
Pixel Pitch: 2.5mm
Pixel Density: 160000dots/㎡
Brightness: 1000cd/㎡
Module Size: 240(W)×120(H)×15(D)mm
Refresh Rate: 3840Hz
Maintenance Type: Front maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item | FS2.5 |
| 2 | Pixel Pitch | 2.5mm |
| 3 | Pixel density | 160000dots/㎡ |
| 4 | LED configuration | SMD2020 |
| 5 | Module size | 240(W)×120(H)×15(D)mm |
| 6 | Module resolution | 96(W)x48(H) |
| 7 | Module weight | 0.3Kg |
| 8 | Scanning Mode | 1/24 |
| 9 | IC model | ICN2153 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 192(W)x288(H) |
| 2 | Cabinet size | 480(W)×720(H)×60(D)mm |
| 3 | Cabinet material | Iron |
| 4 | Cabinet weight | 15kg |
| 5 | Module number | 2*6 |
| 6 | Brightness | 1000cd/㎡ |
| 7 | Viewing angle | 140°(horz.), 140° (vert.) |
| 8 | Optimal View Distance | 2.5m-25m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 600W/㎡ |
| 11 | Avg Power Consumption | 200W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -20℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
1. The LED module is powered by DC +5V (working voltage: 4.2~5.2V),
and it is forbidden to use AC power supply; the positive and
negative poles of the power terminals are strictly forbidden to be
reversed (note: once reversed, the product will burn out and even
cause a serious fire) ;
2. Power supply voltage of LED display: 220V±10% Frequency:
50HZ±5%;
3. Safe and reliable contact with the ground, reliable isolation
between the ground wire and the neutral wire, and keep the power
supply away from high-power backup;
4. If any abnormality such as short circuit, tripping, burning
wire, and smoke is found, the power-on test should not be repeated,
and the problem should be found in time.

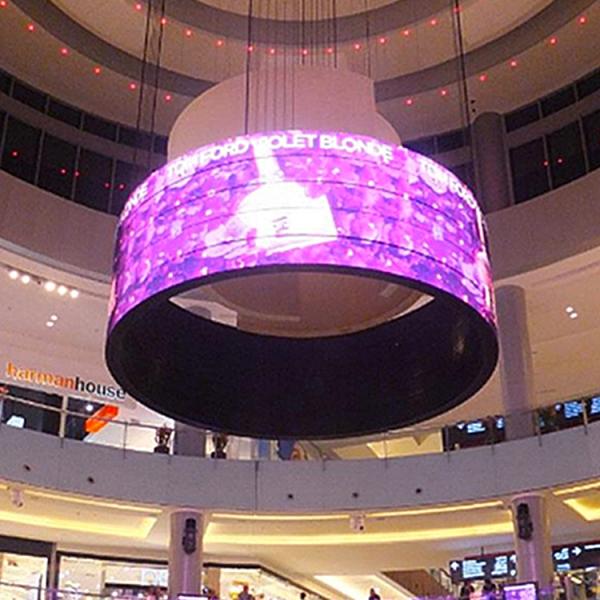

Application:
Widely used in airports, shopping malls, railway stations,
special-shaped stage backgrounds/exhibitions, etc.
FAQ:
Q1: Is the product customizable?
A1: Yes,we can customize the product according to customers'
needs,you just need to provide the requirements details.
Q2. How can we guarantee quality?
A: Always a pre-production sample before mass production; Always
final Inspection before shipment.
Q3. Why should you buy from us not from other suppliers?
A: Shenzhen Showtechled Co. Ltd.,has 18years Industry
Experiences,and more than 20 product patents,we also has
professional installation technicians can provide on-site
installation.
Q4. What services can we provide?
A: Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Language Spoken:English,Chinese,Spanish,Korean,Cantonese etc.
