R8 Series -- Showtechled Full Color Indoor Rental LED Display With
High Refresh Rate LED Screen With GOB Technology
(1) Description of Indoor Rental LED Display with High Refresh Rate
LED Screen:
1. Classical design and natural technic,reliable quality and great
performance.
2. Seamless connecting tech.,screen flatness error <0.1mm.
3. Patented mask,eliminating the dark spots,improving consistency
and viewing angle.
4. High contrast,ideal gray scale,presenting the most real
pictures.
(2) Quick Detail:
Pixel Pitch: 2.976mm
Pixel Density: 112896 dots/㎡
LED Configuration: SMD2020(GOB)
Brightness: 800cd/㎡
Cabinet Size: 500(W)×500(H)×85(D)mm
Refresh Rate: 3840Hz
(3) Specifications:
| Module Parameter |
| 1 | Item | R8-2.9 |
| 2 | Pixel Pitch | 2.976mm(H*V) |
| 3 | Pixel density | 112896 dots/㎡ |
| 4 | LED configuration | SMD2020(GOB) |
| 5 | Module size | 250(W)×250(H)mm |
| 6 | Module resolution | 84(W)x84(H) |
| 7 | Scanning Mode | 1/28 Scan |
| 8 | IC model | ICN2153 |

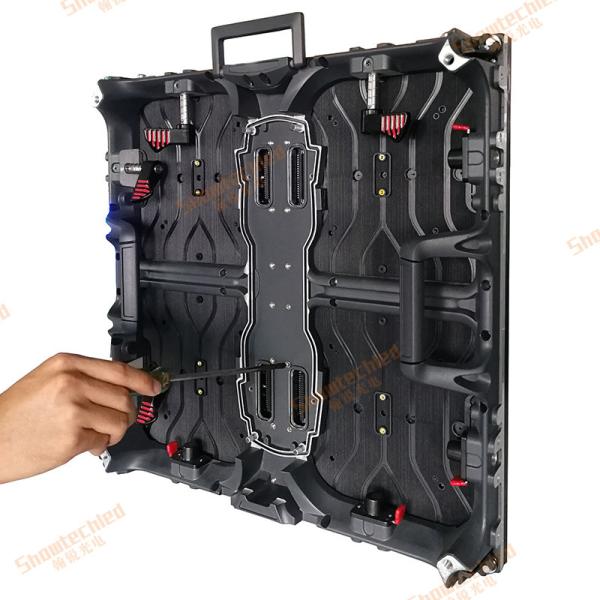

| Cabinet Parameter |
| 1 | Cabinet resolution | 168 (W)x168(H) |
| 2 | Cabinet size | 500(W)×500(H)×85(D)mm |
| 3 | Cabinet weight | 7.2kg |
| 4 | Brightness | 800cd/㎡ |
| 5 | Viewing angle | 160°(horz.), 160° (vert.) |
| 6 | Optimal View Distance | 2.9m |
| 7 | Gray scale | 16bit |
| 8 | Max Power Consumption | 680W/㎡ |
| 9 | Avg Power Consumption | 226W/㎡ |
| 10 | Work Voltage | AC200-240V |
| 11 | Frame Frequency | 60Hz |
| 12 | Refresh rate | 3840HZ |
| 13 | Operation System | Win7&XP |
| 14 | Control Mode | Synchronization with PC |
| 15 | Operating Temperature | ( -20℃～+50℃ ) |
| 16 | IP Rating(Front/Rear) | IP31/P30 |
| 17 | Installation / maintenance type | Hanging/Landing installation
Front/ Rear maintenance |
| 18 | Life Span | 100,000Hours |
Notices:
1. The neutral line and live line of the power line of the computer
and control part cannot be reversely connected, and should be
connected in strict accordance with the original position. If there
are peripherals, after connecting, you should test whether the case
is live.
2. When moving the control equipment such as computer, check the
connection cable before power on, and check whether the control
board is loose.
3. The position and length of communication lines and flat
connecting lines cannot be changed at will.
4. After moving the led display in the conference room, if any
abnormality such as short circuit, trip, burning wire, and smoke is
found, the power test should not be repeated, and the problem
should be found in time.
Application:
R8 series cabinet serves well in close viewing distances, widely
used in church worship, music concerts, wedding ceremony,
exhibitions and etc.
FAQ:
Q1. What`s your payment term? How long it takes to delivery?
A: We accept T/T and L/C, For both T/T and L/C,Our average
Production time is 16 days, after receiving the deposit.
Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q3. What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 8
years technical team who are willing to answer your question . We
can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the
screens, and change the broken modules with spare parts. Also, we
can send technicals to your country to solve problems. Mostly, our
led display will not have big problems within warranty time.
Q4. What's the warranty of your LED Display Screen?
A: We have a 2-5 years warranty for our led display screen, and
100,000 hours life span of the led lamps.
Q5. How to proceed an order for led display?
A: Firstly, let us know your requirements or application, liking
project size, rental or fixed installation.
Secondly, We quote according to your requirements or our
suggestions.
Thirdly, customer confirms the order and places deposit for formal
order.
Fourthly, We arrange the finished display cabinet.
