R5I Series -- Showtechled Indoor Rental LED Video Wall Screen High
Refresh Rate Stage Performance LED Display
(1) Description of Indoor Rental LED Video High Refresh Rate Stage
LED Display:
1) Both front and rear service are available if there is only small
space between led screen and wall,front service led panel is a good
option
Led modules are pasted by magnets,it is easy to maintenance.;
2) Curved led screen can be achieved by curved lock, it can make
both inner and outer arc 0~15 degrees and-15~0 degrees.;
3) Die casting aluminum structure, higher accuracy.
4) Ultra-thin& light, easy installation, lower labor cost.
5) It is featured by high strength, toughness, precision and it is
hard to be deformed.
(2) Quick Detail:
Pixel Pitch: 2.976mm
Brightness: 800cd/㎡
Module size: 250mm*250mm
Cabinet Size: 500(W)×500(H)×85(D)mm
Refresh Rate: 3840Hz
Warranty: 2 Year Warranty
(3) Specifications:
| Module Parameter |
| 1 | Item | R5I-2.9 |
| 2 | Pixel Pitch | 2.97mm(H*V) |
| 3 | Pixel density | 112896 dots/㎡ |
| 4 | LED configuration | SMD2121 |
| 5 | Module size | 250(W)×250(H)mm |
| 6 | Module resolution | 84(W)x84(H) |
| 7 | Scanning Mode | 1/28 Scan |
| 8 | IC model | ICN2153 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 168 (W)x168(H) |
| 2 | Cabinet size | 500(W)×500(H)×85(D)mm |
| 3 | Cabinet weight | 7.2kg |
| 4 | Brightness | 1000cd/㎡ |
| 5 | Viewing angle | 160°(horz.), 160° (vert.) |
| 6 | Optimal View Distance | 2.9m |
| 7 | Gray scale | 15bit |
| 8 | Max Power Consumption | 650W/㎡ |
| 9 | Avg Power Consumption | 217W/㎡ |
| 10 | Work Voltage | AC200-240V |
| 11 | Frame Frequency | 60Hz |
| 12 | Refresh rate | 3840HZ |
| 13 | Operation System | Win7&XP |
| 14 | Control Mode | Synchronization with PC |
| 15 | Operating Temperature | ( -20℃～+50℃ ) |
| 16 | IP Rating(Front/Rear) | IP31 |
| 17 | Installation / maintenance type | Hanging/Landing installation
Rear maintenance |
| 18 | Life Span | 100,000Hours |
Notices:
1. Check the circuit and switch of the LED display screen, keep the
switch dry, and avoid leakage and electric shock accidents.
2. The air conditioner can be used to dehumidify the LED display,
and the desiccant and physical moisture absorption can be placed to
keep it dry and prevent the display from getting wet.
3. During the rainy season, the LED screen display is guaranteed to
be used at least once a week, and it is lit for at least 2 hours
each time.
4. The LED display is properly ventilated, which can quickly
evaporate the water vapor attached to the display and reduce the
humidity of the indoor environment. But it should be noted that:
avoid ventilation in some windless and humid weather, which will
increase the indoor humidity.

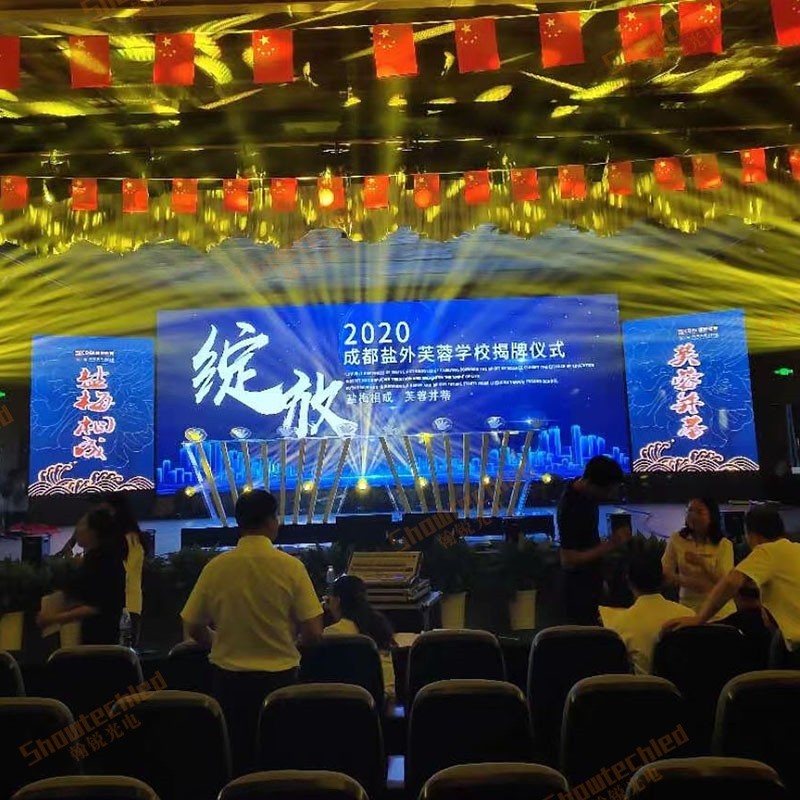

Application:
It is applicable for all of indoor occasions such as exhibition
display stage performance entertainment activities, government
conference and various of commercial conferences,etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2: What is your current lead time?
A: Usually no more than 30 days; and some products are in stock for
quick delivery.
Q3. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q4. If I broad the market, can I be your agents?
A: Yes, we want to build relationship with all local powerful
distributor service is good for support you do long time local
service to win customer. Our price and quality can give our
customer more profit.
Q5: What technical supports can you offer?
A: We provide all kinds of technology trainings for free, including
the operation and maintenance training of the LED screens in our
factory. we can arrange an engineer team to the country of
customers to instruct the installation, it needs customers to pay
the relevant fees.
