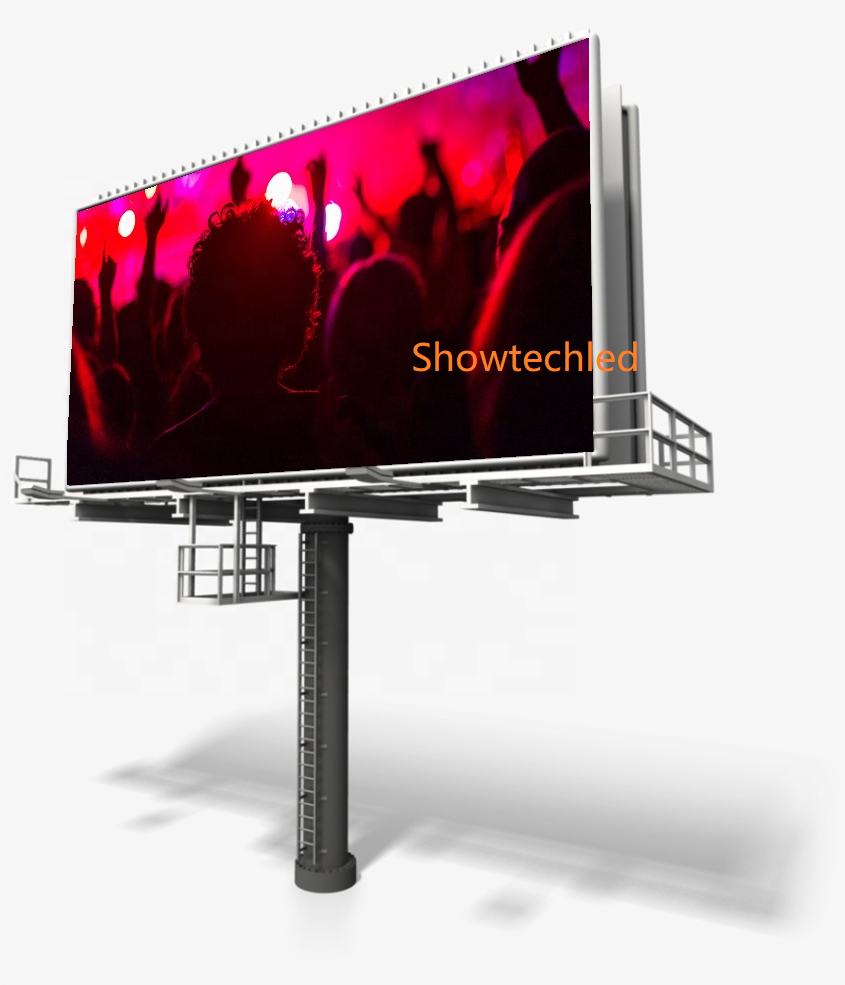

FB Series -- Showtechled Outdoor Fixed Waterproof Lightweight LED
Screen High Refresh Energy Saving Advertising LED Display
(1) Description of Outdoor Fixed Waterproof Lightweight LED Screen
High Refresh Energy Saving Advertising LED Display:
1. High Brightness: Brightness can up to 8000-8500 nits with Convex
Lens .
2. Super Low Power Consumption: though brightness so high, the
Power Consumption can make it much lower.Max Power Consumption:
220W/㎡, Avg 60W/㎡.
3. High contrast : mask high brim design, greatly enhance the
contrast.
4. Long Warranty Period: we provide 5-year Warranty from confidence
in our products.
5. Certified : with CE, EMC, FCC, ETL certification
(2) Quick Detail:
Pixel Pitch: 7.81mm
Brightness: 8000cd/㎡
Cabinet Material: Aluminum
Refresh rate: 3840Hz
Avg Power Consumption: 60W
Maintenance Type: Front/Rear maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item | FB7.8 |
| 2 | Pixel Pitch | 7.81mm(H*V) |
| 3 | Pixel density | 16384dots/㎡ |
| 4 | LED configuration | SMD2727 ( gold wire ) |
| 5 | Module size | 500(W)×250(H)*16(D)mm |
| 6 | Module resolution | 64(W)x32(H) |
| 7 | Scanning Mode | 1/4 Scan |
| 8 | IC model | MBI5123 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 128(W)x128(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×75(D)mm |
| 3 | Cabinet materials | Aluminum |
| 4 | Cabinet weight | 22kg |
| 5 | Brightness | 8000cd/㎡ |
| 6 | Viewing angle | 160°(horz.), 160° (vert.) |
| 7 | Optimal View Distance | 7.8m |
| 8 | Gray scale | 15bit |
| 9 | Max Power Consumption | 220W/㎡ |
| 10 | Avg Power Consumption | 60W/㎡ |
| 11 | Input power mode | Solar or mains electricity |
| 12 | Work Voltage ( Input) | DC24V or AC90-240V |
| 13 | Work Voltage ( Output) | DC4.5V |
| 14 | Frame Frequency | 60Hz |
| 15 | Refresh rate | 3840HZ |
| 16 | Operation System | Win7&XP |
| 17 | Control Mode | Synchronization with PC |
| 18 | Operating Temperature | ( -40℃～+60℃ ) |
| 19 | IP Rating(Front/Rear) | IP65/IP54 |
| 20 | 90° right Angle splicing function | To do naked eye 3D display |
| 21 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 22 | Product Certification | CE / EMC / FCC / ETL |
| 23 | Quality Warranty | 5 Years |
| 24 | Power supply | Meanwell HSP300-5 |
| 25 | Continuous operation time | 96Hours |
| 26 | Life Span | 100,000Hours |
Notices:
1. Check the circuit and switch of the LED screen, keep the switch
dry, and avoid leakage and electric shock accidents.
2. Do a good job of waterproofing: the waterproof measures of the
LED display itself, the screen body and the junction of the screen
body and the building must be strictly waterproof and leak-proof;
the screen body must have good drainage measures, so that the water
can be discharged smoothly in the event of water accumulation; pay
attention to waterproof and moisture-proof .
3. Keep the power supply stable, and do a good job of grounding
protection to avoid lightning strikes, do not use it in harsh
natural conditions, especially strong lightning weather;
4. The power supply must be supplied to the large screen step by
step, because the maximum power state of the entire screen will
have an impact on the entire power distribution system.
Application:
Widely used in buildings, factories, airports, stations, stadiums,
highways, shopping malls and other places.
FAQ:
Q1: What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
Q2: Why Should You Buy From us Not From Other Suppliers?
A: After the 18 years' development, Shenzhen Chip Optech Co., Ltd
has accumulated rich experience of R&D and has the first-class
automated production equipment, standard clean automation
production plant and anti-static system devices.
Q3: What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back
to Shenzhen.
