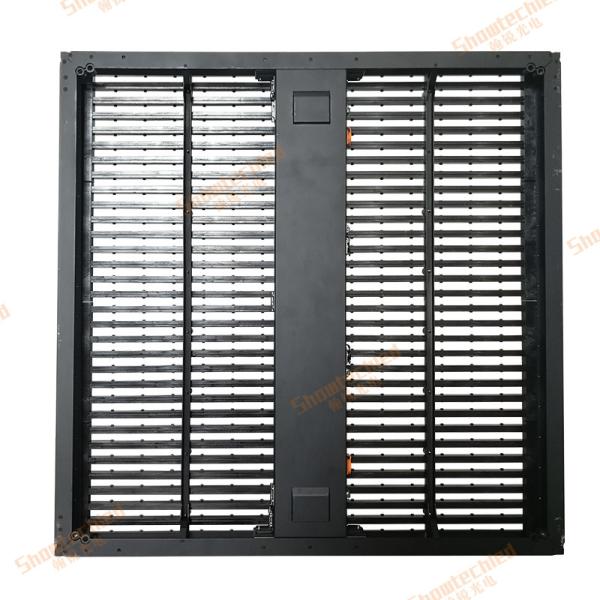

C Serise Mesh LED -- Showtechled Outdoor Aluminum Energy Saving LED
Display Front and Rear Maintenance Advertising LED
(1) Description of Outdoor Waterproof Advertising Energy Saving LED Display:
1. High brightness : C1531 Mesh screen brightness is up to
12000nits, Standard configuration is 8000nits and it can reach up
to 12000nits with
2. High brightness level LED lamp such DIP 349.
3. Energy saving and low power consumption, the maximum power
consumption is 360W/sqm, and the average power consumption is
100W/sqm.
4. Front&rear installation and maintenance: C series mesh can
be installed in a variety of outdoor environments because it can be
either front or rear installed and maintained; Modules, receiving
cards, power supply, cabinet, all the parts can be front
maintained, not merely modules.
5. Lightweight : C series mesh cabinet frame materials is aluminum
, only 15-20kg/㎡
6. High refresh rate: Refresh can reach 3840Hz
(2) Quick Detail:
● Pixel Pitch: 15.625x31.25mm(H*V)
● High transparency: 50%
● Brightness: 12000cd/㎡
● Max Power Consumption: 360W/㎡
● Avg Power Consumption: 100W/㎡
● Refresh rate: 3840Hz
● Work Voltage: AV190-260V
● Maintenance type: Front / Back Maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item | C1531 |
| 2 | Pixel Pitch | 15.6x31.25mm(H*V) |
| 3 | Pixel density | 2048dots/㎡ |
| 4 | LED configuration | DIP349 |
| 5 | Module size | 500(W)×250(H)×25(D)mm |
| 6 | Module resolution | 32(W)x8(H) |
| 7 | Scanning Mode | Static |
| Cabinet Parameter |
| 1 | Cabinet resolution | 64(W)x32(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×85(D)mm |
| 3 | Cabinet weight | 18kg |
| 4 | Cabinet marerial | Aluminum |
| 5 | Transparency Rate | 50% |
| 6 | Brightness | 12000cd/㎡ |
| 7 | Viewing angle | 120°(horz.), 60° (vert.) |
| 8 | Optimal View Distance | 15m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 360W/㎡ |
| 11 | Avg Power Consumption | 100W/㎡ |
| 12 | Work Voltage | AV190-260V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP65/IP65 |
| 19 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
1. Be sure to connect the wires correctly, do not connect the wrong
wires.
2. Do not expose the copper wire outside the power terminal hole to
avoid short circuit or electric shock.
3. During the rainy season, the LED screen display is guaranteed to
be used at least once a week, and it is lit for at least 2 hours
each time.
4. The use of outdoor LED displays is complex, and it is inevitable
that there will be water seepage in the cabinet. Usually, it is
necessary to regularly check whether the waterproof rubber ring of
the cabinet is aging, deformed or incomplete; whether the screws or
locks of the sealing box are easy to loosen and the pressure is not
enough, which affects the use.
(4) Application:
Widely used for outdoor squares, stadiums, hotels, hospitals,
schools, shopping malls, supermarkets, etc.
