    10mm 6500cd/Sqm Stadium Outdoor Perimeter LED Display Waterproof LED Screen

    Ask Lasest Price
    Brand Name : Showtechled
    Model Number : FA Series
    Certification : CE/FCC/ETL/EMC
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 10000sqm/month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

    10mm 6500cd/Sqm Stadium Outdoor Perimeter LED Display Waterproof LED Screen

    FA Series--Outdoor Waterproof Advertising High Brightness High Refresh Large Sports Stadium LED Display


    (1) Description of Outdoor Waterproof HD Advertising Stadium LED Display:

    1. Safety: Our module uses a Soft Ware Mask design to better protect athletes and screens. When the athlete hits the screen, Because we use a Soft Ware Mask design, so the athlete will not be injured, and our screen will be intact.

    2. High precision: the accuracy error of our cabinet is less than 0.1mm. The cabinet has good flatness.

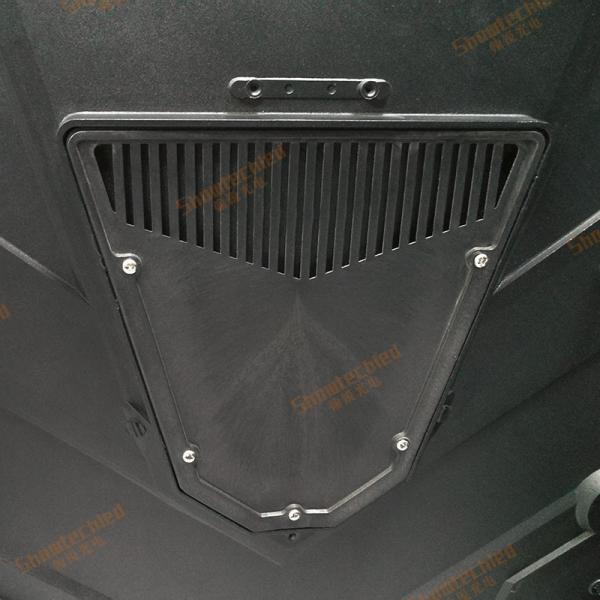

    3. Fast heat dissipation: Our Cabinet is equipped with a special heat dissipation channel to ensure that the cabinet can quickly dissipate heat.

    4. Waterproof: Outdoor waterproof rating reaches IP65.

    5. High Brightness: Brightness reaches more than 6500cd/㎡.

    6. High refresh rate: Refresh can reach 3840Hz.


    (2) Quick Detail:

    Brightness: 6500cd/㎡

    Scan model: 1/2 Scan

    Refresh rate: 3840Hz optional

    Viewing angle: 120°(horz.), 120° (vert.)

    Work Voltage: AC90-264V

    Maintenance type: Front/Rear maintenance

    Life Span: 100,000Hours

    2 Year Warranty


    (3)Specifications:

    Module Parameter
    1ItemFA10
    2Pixel Pitch10mm
    3Pixel density10000dots/㎡
    4LED configurationSMD3535
    5Module size320(W)×160(H)×19(D)mm
    6Module resolution32(W)x16(H)
    7Module weight0.6Kg
    8Scanning Mode1/2
    Cabinet Parameter
    1Cabinet resolution96(W)x96(H)
    2Cabinet size960(W)×960(H)×134(D)mm
    3Cabinet materialDie-casting Aluminum, Silicon Soft Ware Mask
    4Cabinet weight25kg
    5Module number3*6
    6Brightness6500cd/㎡
    7Viewing angle160°(horz.), 140° (vert.)
    8Optimal View Distance8m-120m
    9Gray scale14(bit)
    10Max Power Consumption880W/㎡
    11Avg Power Consumption260W/㎡
    12Work VoltageAC110V/220V
    13Frame Frequency60Hz
    14Refresh rate3840Hz
    15Operation SystemWin7&XP
    16Control ModeSynchronization with PC
    17Operating Temperature( -20℃~+60℃ )
    18IP Rating(Front/Rear)IP65/IP65
    19maintenance typeBack maintenance
    20Life Span100,000Hours

    Application:Widely used in outdoor squares, stadiums and other physical activity.



    FAQ:

    Q1. Can I have a sample order for led display?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?

    A: 10-15 days for Sample preparing ,20-25 working days for mass production.


    Q3. How do you ship the goods and how long does it take to arrive?

    A: Ship by DHL, UPS, FedEx or TNT. It takes 5-15 days to arrive. Airline and sea shipping also optional.
