    RGB P7.81 LED Sign Display Lightweight Full Color Screen Board

    Ask Lasest Price
    Brand Name : Showtechled
    Model Number : FB Series-FB7.81
    Certification : CE/FCC/ETL/EMC
    Price : negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 10000sqm/month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

    RGB P7.81 LED Sign Display Lightweight Full Color Screen Board

    RGB P7.81 LED Sign Display Lightweight Full Color Screen Board


    P7.81 Front And Rear Service Outdoor Fixed Billboard Sign Board Signage Advertising Screen


    (1) Description of Outdoor Waterproof Billboards Advertising LED Display:

    1. High Brightness : Brightness can up to 8000 ni ts with Convex Lens .

    2. Super Low Power Consumption: though brightness so high, the Power Consumption can make it much lower.

    Max Power Consumption: 360W/㎡, Avg120W/㎡.

    3.Certified : with CE, EMC, FCC, ETL certification.

    (2) ● Cabinet materials: Aluminum

    ● Brightness: 8000-8500nits with Convex Lens

    ● Max Power Consumption: 360W/㎡

    ● Avg Power Consumption: 120W/㎡

    ● Refresh rate: 3840Hz

    ● Work Voltage: DC24V or AC90-240V

    ● Maintenance type: Front / Back Maintenance

    ● Life Span: 100,000Hours

    ● CE / EMC / FCC / ETL Certificated

    ● 5 Year Warranty


    (3) Specifications:

    Module Parameter

    1

    Item

    FB7.8

    2

    Pixel Pitch

    7.81mm(H*V)

    3

    Pixel density

    16384dots/㎡

    4

    LED configuration

    SMD2727 ( gold wire )

    5

    Module size

    500(W)×250(H)*16(D)mm

    6

    Module resolution

    64(W)x32(H)

    7

    Scanning Mode

    1/4 Scan

    Cabinet Parameter

    1

    Cabinet resolution

    128(W)x128(H)

    2

    Cabinet size

    1000(W)×1000(H)×75(D)mm

    3

    Cabinet materials

    Aluminum

    4

    Cabinet weight

    20kg

    5

    Brightness

    8000cd/㎡

    6

    Viewing angle

    160°(horz.), 160° (vert.)

    7

    Optimal View Distance

    7.8m

    8

    Gray scale

    15bit

    9

    Max Power Consumption

    360W/㎡

    10

    Avg Power Consumption

    120W/㎡

    11

    Input power mode

    Solar or mains electricity

    12

    Work Voltage ( Input)

    AC90-240V

    13

    Work Voltage ( Output)

    DC4.5V

    14

    Frame Frequency

    60Hz

    15

    Refresh rate

    3840HZ

    16

    Operation System

    Win7&XP

    17

    Control Mode

    Synchronization with PC

    18

    Operating Temperature

    ( -40℃~+60℃ )

    19

    IP Rating(Front/Rear)

    IP65/IP54

    20

    90° right Angle splicing function

    To do naked eye 3D display

    21

    Installation / maintenance type

    Front / Back installation
    Front / Back maintenance

    22

    Product Certification

    CE / EMC / FCC / ETL

    23

    Quality Warranty

    5 Years

    24

    Power supply

    Meanwell HSP300-5

    25

    Continuous operation time

    96Hours

    26

    Life Span

    100,000Hours


    Notices:

    · Open the package, check the product carefully, and handle it with care to avoid damaging the product.

    · Be sure to connect the wires correctly, do not connect the wrong wires.

    · When installing and disassembling the product, please disconnect the power supply to avoid electric shock.


    Application:

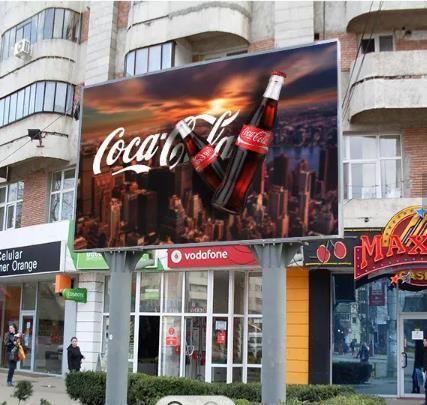

    Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.

    RGB P7.81 LED Sign Display Lightweight Full Color Screen Board


    FAQ:

    Q1. Can I get some samples?
    A1:Yes,we can provide samples.

    Q2. how can we guarantee quality?
    A2:Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    Q3.what can you buy from us?
    A3:Any non-violating product

    Q4. why should you buy from us not from other suppliers?
    A4:Over 19 years R&D experience
    One stop solution with world-class customer services

    Q5. what services can we provide?
    A5:Yes,we provide OEM&ODM service.
