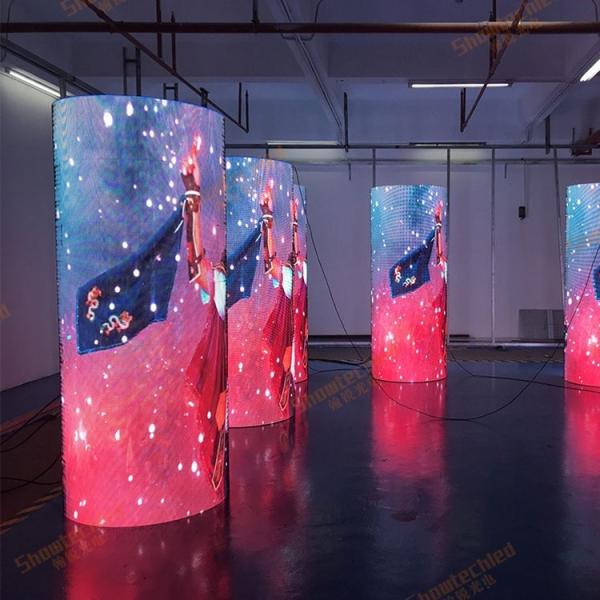

SI Serise--Indoor Flexible LED Screen Creative Fixed Soft LED
Display Customised Special Shaped LED Screen
(1) Description of Indoor Flexible Creative Soft LED Screen:
1. Thin and flexible: Made of FRC material, it has a thin
appearance and high flexibility.
2. Display effect: high grayscale and high refresh, true
reproduction of high-definition images, uniform color, high
contrast, and clear picture.
3. Patented product: independent research and development design,
with flexible screen patent technology.
4. Customer customization: customer customized products, modeling
design.
5. Convenient installation: The magnet design can be assembled and
disassembled independently, and the operation is simple and
time-consuming.
(2) Quick Detail:
Pixel Pitch:2.5mm
Color:full color
Place of Origin:Guangdong, China
Screen Dimension:640*720 or Customer request
Refresh rate: 3840Hz
Application: Indoor
Maintenance type:Front maintenance
Warranty:2 Year
(3) Specifications:
| Module Parameter |
| 1 | Item | SI2.5 |
| 2 | Pixel Pitch | 2.5mm |
| 3 | Pixel density | 160000dots/㎡ |
| 4 | LED configuration | SMD2020 |
| 5 | Module size | 240(W)×120(H)×15(D)mm |
| 6 | Module resolution | 96(W)x48(H) |
| 7 | Module weight | 0.3Kg |
| 8 | Scanning Mode | 1/24 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 192(W)x288(H) |
| 2 | Cabinet size | 480(W)×720(H)×60(D)mm or customized |
| 3 | Cabinet material | Iron |
| 4 | Cabinet weight | 15kg |
| 5 | Module number | 2*6 |
| 6 | Brightness | 1000cd/㎡ |
| 7 | Viewing angle | 140°(horz.), 140° (vert.) |
| 8 | Optimal View Distance | 2.5m-25m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 600W/㎡ |
| 11 | Avg Power Consumption | 200W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -20℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |

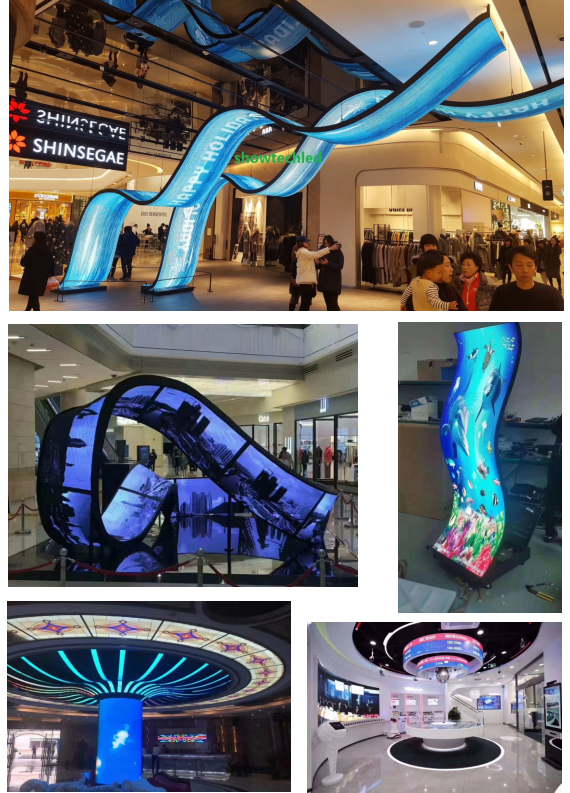

Application:
Widely used in various special-shaped places.
FAQ:
Q1. Who are we?
A: We are based in Guangdong, China, start from 2011,sell to North
America(28.00%),Western Europe(28.00%),Oceania(10.00%),Mid
East(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast
Asia(3.00%),Eastern Asia(3.00%),Northern
Europe(3.00%),Africa(2.00%),Southern Europe(2.00%),South
Asia(1.00%),Domestic Market(0.00%). There are total about 51-100
people in our office.
Q2. How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3. What else can you buy from us?
A: We have indoor fixed led display /Small pixel pitch led
display/Flexible soft led display/Naked eye 3D led display/Outdoor
Mesh Screen/Grille led display/Transparent led display/Billboard
led display/Outdoor fixed led display/Front service led
display/Energy saving led display/Stadium led display /rental led
display/ Advertising led display for you choose.
Q4. Why should you buy from us not from other suppliers?
A: Over 18 years' LED manufacturing experience, 10 more persons
R&D team with 11 pcs of patent.3 professional sales team , 1
after sales service team support and engineer team
support.Manufacturing capacity of 10000 square meters per month.
Q5. What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express
Delivery；Accepted Payment Currency:USD,EUR,RMB;Accepted Payment
Type: T/T,L/C,Western Union,Cash;
