    Creative Tunnel Space Time Curved LED Screen Soft Module P2.5

    Ask Lasest Price
    Brand Name : Showtechled
    Model Number : SI-P2.5
    Certification : CE/FCC/ETL/EMC
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000sqm/month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

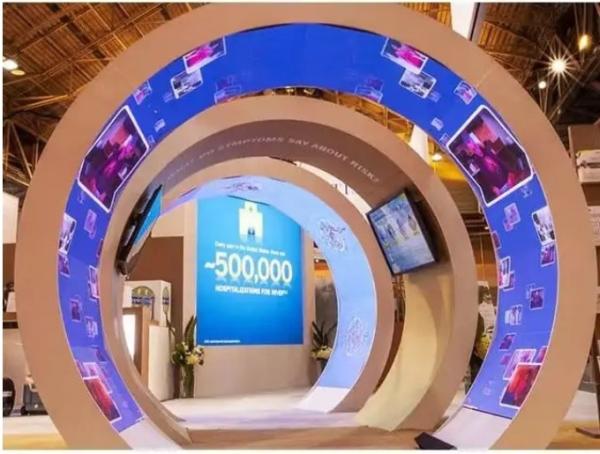

    Creative Tunnel Space Time Curved LED Screen Soft Module P2.5

    Creative LED Tunnel Screen Space-time Tunnel Screen Curved LED Screen Soft LED Module P2.5

    P2.5 Indoor Advertising Flexible Led Screen Slim Hanging Flexible Soft Module Curved LED Display


    Quick Detail:

    Pixel Pitch:2.5mm

    Color:full color

    Place of Origin:Guangdong, China

    Screen Dimension:640*720 or Customer request

    Refresh rate: 3840Hz

    Application: Indoor


    (2) Description:

    1. The soft film group has the characteristics of flexibility, ultra light and ultra-thin, flexible and changeable, can be bent arbitrarily without damaging the lamp beads, and can form various arbitrary shapes.
    2. This is a personalized design, which is suitable for a variety of complex environments and has better visual effects.
    3. It has passed 24 high-temperature and low-temperature tests without degumming and warping angle.
    4. Eliminate static electricity with soft shell. The magnet is completely hollow, with large magnetic force and high flatness.


    (3)Specifications:

    Module Parameter
    1ItemFS2.5
    2Pixel Pitch2.5mm
    3Pixel density160000dots/㎡
    4LED configurationSMD2020
    5Module size240(W)×120(H)×15(D)mm
    6Module resolution96(W)x48(H)
    7Module weight0.3Kg
    8Scanning Mode1/24
    Cabinet Parameter
    1Cabinet resolution192(W)x288(H)
    2Cabinet size

    480(W)×720(H)×60(D)mm

    or customized

    3Cabinet materialIron
    4Cabinet weight15kg
    5Module number2*6
    6Brightness1000cd/㎡
    7Viewing angle140°(horz.), 140° (vert.)
    8Optimal View Distance2.5m-25m
    9Gray scale14(bit)
    10Max Power Consumption600W/㎡
    11Avg Power Consumption200W/㎡
    12Work VoltageAC190-264V
    13Frame Frequency60Hz
    14Refresh rate3840Hz
    15Operation SystemWin7&XP
    16Control ModeSynchronization with PC
    17Operating Temperature( -20℃~+50℃ )
    18IP Rating(Front/Rear)IP31
    19maintenance typeFront maintenance
    20Life Span100,000Hours

    (4) Notes:

    · ① Open the package, check the product carefully, and handle it with care to avoid damage to the product.

    ·②Be sure to connect the wires correctly, do not connect the wrong wires.

    · ③ Do not expose the copper wire outside the power terminal hole to avoid short circuit or electric shock.

    ·④ When installing and disassembling the product, please install it carefully to avoid damaging the product, and please disconnect the power supply to avoid electric shock.

    (5)Application:Widely used in various special-shaped places.

    Creative Tunnel Space Time Curved LED Screen Soft Module P2.5

    (6)FAQ:

    Q1:Are you a manufacturer or trading company?
    A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for 19 years.
    Q2:How does your factory do regarding quality control?
    A2:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CE, ROHS ,FCC,EMC authentication.
    Q3:What is your MOQ?
    A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
    Q4:When will you make the delivery?
    A4:Generally, we can make the delivery within 10 working days according to the size and quantities of your order.
    Q5:What technical supports can you offer?
    A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory.
