SI Series -- Indoor P2 Soft Module Curved Flexible Led Display
Screen For Cylindrical Column Use
(1) Description of Indoor P2 Soft Module Curved Flexible Led Display:
1.Seamless and lightweight
2. Flexible to design shapes,effects,in any types
3. Modular design for easy installation and maintenance
4.Easy transport,save shipping cost
5.Brilliant colors, breathtaking grayscales
(2) Quick Detail:
Pixel Pitch:2mm
Pixel Density:250000dots/㎡
Module Size: 256(W)*128(H)mm
Screen Dimension:Customer request
Maintenance Type:Front maintenance
Refresh Rate:3840Hz
(3) Specifications:
| Module Parameter |
| 1 | Item | SI 2 |
| 2 | Pixel Pitch | 2.0mm |
| 3 | Pixel density | 250000dots/㎡ |
| 4 | LED configuration | SMD1415 |
| 5 | Module size | 256(W)×128(H)×15(D)mm |
| 6 | Module resolution | 128(W)x64(H) |
| 7 | Module weight | 0.35Kg |
| 8 | Scanning Mode | 1/32 |
| 9 | IC model | ICN2153 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 256(W)x256(H) |
| 2 | Cabinet size | 512(W)×512(H)×60(D)mm |
| 3 | Cabinet material | Iron |
| 4 | Cabinet weight | 12kg |
| 5 | Module number | 2*4 |
| 6 | Brightness | 1000cd/㎡ |
| 7 | Viewing angle | 140°(horz.), 140° (vert.) |
| 8 | Optimal View Distance | 2m-20m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 600W/㎡ |
| 11 | Avg Power Consumption | 200W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -20℃～+50℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
1. The LED module is powered by DC +5V (working voltage: 4.2-5.2V),
and it is forbidden to use AC power supply; the positive and
negative poles of the power terminals are strictly prohibited to be
reversed (note: once reversed, the product will burn out and even
cause a serious fire) ;
2. Safe and reliable contact with the ground, reliable isolation
between the ground wire and the neutral wire, and the access to the
power supply is far away from high-power electrical equipment;
3. If any abnormality such as short circuit, tripping, burning
wire, and smoke is found, the power-on test should not be repeated,
and the problem should be found in time.
4. Keep the power supply stable, and do a good job of grounding
protection to avoid lightning strikes, do not use it in harsh
natural conditions, especially strong lightning weather.

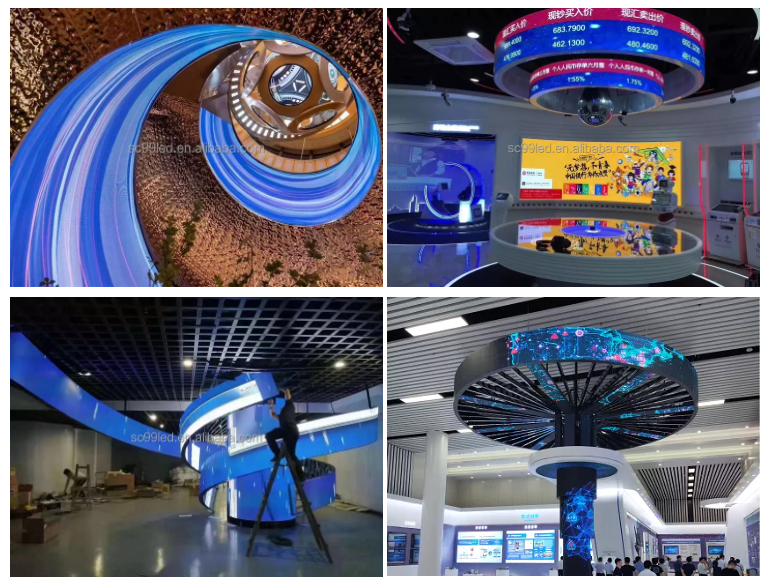

Application:
Widely used in airports, high-speed railway stations, railway
stations, shopping malls and various special-shaped places.
FAQ:
Q1. How can I get an accurate quote for an advertising signage LED
video wall display screen?
A1: a. Please let us know for indoor or outdoor use
b. Please tell us the usage scenarios (concerts, churches,
exhibition halls, conference rooms, shopping mall billboards)
c. It would be better to have CAD drawings, renderings and the
exact size of the LED screen
Q2. How long does it take for me to get the price of indoor and
outdoor LED display screen?
A2:We usually quote within 8 hours after receiving your inquiry
(excluding weekends and holidays).
If you need a price urgently, please send a TM message, email or
contact us by other means so that we can quote you.
Q3. Can I buy samples and place an order?
A3:Can. Please feel free to contact us.
Q4. What is your delivery time?(Indoor and outdoor fixed video
wall, indoor and outdoor rental LED panel)
A4:Depending on the order type and quantity, LED modules in stock
will be shipped next day.Usually small quantities of customized
products are shipped within 15 days, and large quantities are about
30 days.
Q5. What are your payment terms?
A5:T/T, Western Union, MoneyGram, Paypal, start production with 50%
deposit, and ship after full payment.
