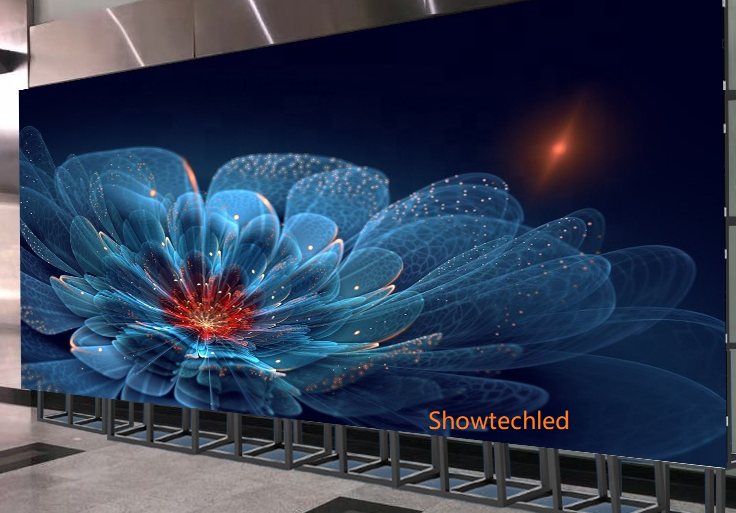

COB Series -- Showtechled Indoor Fixed Small Pixel Pitch LED
Display COB Technology LED Screen High Definition
(1) Description of Indoor Fixed Small Pixel Pitch LED Display:
1. Excellent hardware protection (anti-knock, waterproof,
anti-static, scrubbing;
2. Use environment and maintenance methods: It can be used in
various conference rooms, museums and various indoor places, Front
maintenance series. Can be installed and maintained quickly;
3. Ultra-high brightness, contrast, gamut, and ink at one time;
4. The extinguishing screen mirror black and bright, comparable to
the appearance of the LCD screen.
(2) Quick Detail:
Pixel pitch: 1.25mm
LED configuration: 1R1G1B(COB)
Brightness: ≧500cd/㎡
Module size: 150mm*168.75mm
Refresh rate: ≥3840Hz
Maintenance type: Front maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item | COB1.25 |
| 2 | Pixel Pitch | 1.25mm |
| 3 | Pixel density | 640000dots/㎡ |
| 4 | Pixel configuration | 1R1G1B(COB) |
| 5 | Module size | 150(W)×168.758(H)mm |
| 6 | Module resolution | 120(W)x135(H) |
| 7 | Module weight | 0.15Kg |
| 8 | Scanning Mode | 1/60 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 480(W)x270(H) |
| 2 | Cabinet size | 600(W)×337.5(H)×60(D)mm |
| 3 | Cabinet material | Die Casting Aluminum |
| 4 | Cabinet weight | 5.5kg |
| 5 | Module number | 4*2 |
| 6 | Brightness | 500cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 1.25m-12.5m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 600W/㎡ |
| 11 | Avg Power Consumption | 200W/㎡ |
| 12 | Work Voltage | AC190-264V |
| 13 | Frame Frequency | 60Hz |
| 14 | Refresh rate | 3840Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+60℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | front maintenance |
| 20 | Life Span | 100,000Hours |
Notices:
· Open the package, check the product carefully, and handle it with
care to avoid damaging the product.
· Check the circuit and switch of the LED screen, keep the switch
dry, and avoid leakage and electric shock accidents.·
· Regularly inspect whether the anti-corrosion and anti-rust paint
on the surface of the product and steel structure welding points is
peeling off. If there is peeling or rust, spray anti-rust paint or
apply anti-rust paste in time. .
· The power supply should be stable, and the grounding protection
should be good. Regularly check the reliability of the lightning
rod and grounding system.
Application:
Widely used in indoor squares, stadiums, hotels, conference rooms,
offices,hospitals,schools,TV stations, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. Do you have any MOQ limit for led display order?
A: Low MOQ, 1pc for sample checking is available.
Q3. What is your shipping and packing way?
A: Our standard packing for modules are carton box and for the led
cabinet, we do wood box or flight case as per customers’ requests.
For the mass order ( fit for a container), generally we do shipment
by Sea.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q5. Is it OK to print my logo on led screen product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
