HD Series -- Showtechled Indoor Fixed Small Pixel Pitch LED Display
High Resolution Advertising LED Screen
(1) Description of Small Pixel Pitch LED Display:
1. 640x480 Die-casting Aluminum LED Panels, 60mm thickness, 6kg/pcs
panel.
2. High gcontrast ratio, 5000: 1 contrast ratio, 3840Hz refresh
rate
3. Seamless tiled display, <0.01mm.
4. Natural heat dissipation, ultra silence
5. Die-casting aluminum, CNC fine finishing,good flatness
(2) Quick Detail:
Pixel Pitch: 4m
Pixel density: 62500dots/㎡
LED configuration: SMD2020
Moduled Size: 320*160mm
Cabinet material: Die casting aluminum
Maintenance type: Front maintenance
Life Span: 100,000Hours
Brand Name: Showtechled
(3) Specifications:
| Module Parameter |
| 1 | Item | HD4 |
| 2 | Pixel Pitch | 4.0mm |
| 3 | Pixel density | 62500dots/㎡ |
| 4 | LED configuration | SMD2020 |
| 5 | Module size | 320(W)×160(H)×12(D)mm |
| 6 | Module resolution | 80(W)x40(H) |
| 7 | Module weight | 0.5Kg |
| 8 | Scanning Mode | 1/20 |
| 9 | IC model | ICN2037 |
| Cabinet Parameter |
| 1 | Cabinet resolution | 160(W)x120(H) |
| 2 | Cabinet size | 640(W)×480(H)×50(D)mm |
| 3 | Cabinet material | Die casting Magnesium alloy |
| 4 | Cabinet weight | 6kg |
| 5 | Module number | 2*3 |
| 6 | Brightness | 1000cd/㎡ |
| 7 | Viewing angle | 160°(horz.), 160° (vert.) |
| 8 | Optimal View Distance | 4m-40m |
| 9 | Gray scale | 14(bit) |
| 10 | Max Power Consumption | 480W/㎡ |
| 11 | Avg Power Consumption | 160W/㎡ |
| 12 | Work Voltage | AC90-264V / AC190-264V |
| 13 | Frame Frequency | 50Hz / 60Hz |
| 14 | Refresh rate | 1920Hz |
| 15 | Operation System | Win7&XP |
| 16 | Control Mode | Synchronization with PC |
| 17 | Operating Temperature | ( -40℃～+ 50℃ ) |
| 18 | IP Rating(Front/Rear) | IP31 |
| 19 | maintenance type | Front maintenance |
| 20 | Life Span | 100,000Hours |
Notes:
1. Open the package, check the product carefully, and handle it
with care to avoid damage to the product.
2. Check the circuit and switch of the LED display screen, keep the
switch dry, and avoid leakage and electric shock accidents.
3. The air conditioner can be used to dehumidify the LED display,
and the desiccant and physical moisture absorption can be placed to
keep it dry and prevent the display from getting wet.
4. During the rainy season, the LED screen display is guaranteed to
be used at least once a week, and it is lit for at least 2 hours
each time.

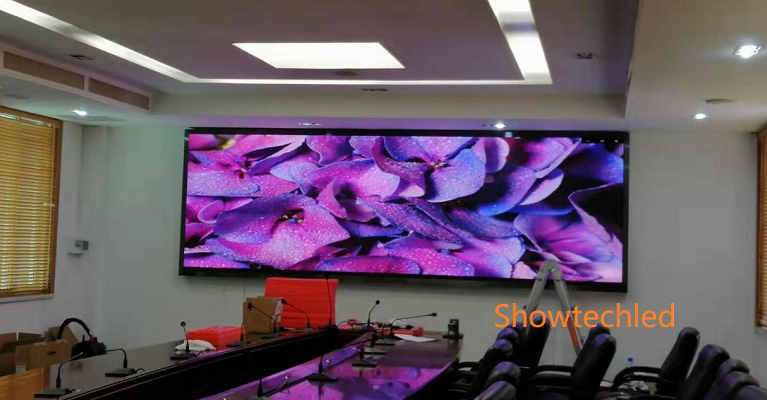

Application:
Widely used suitable for buildings, factories, conference rooms,
monitoring rooms, stadiums, airports, shopping malls, restaurants,
hospitals and other places.
FAQ:
Q1: Are you the manufacturer or trading company? and where is your
factory?
A: We are professional manufacturer devote in producing Led
outdoor, Led indoor display, rental display, stadium
screen,advertising screen and stage screen etc. You are warmly
welcome to visit our factory to learn the technical and maintenance
skillsand everything you need in our factory.
Q2: May be we will need some samples, what is the lead time of
samples and lead time of order?
A: We will arrange your sample of the Payment within 7 days and
arrange your order within 15-30 days after receiving your
Payment.Pixel Pitch
Q3: How could us arrange order?
A: Please send your inquiry to us--click the "send" in below, then
let us confirm all details, you can click "start order" in above,or
we send you order link for your payment.
Q4: Which payment method does your company accept?
A: We support T/T or Trade Assurance. For more payment methods,
please contact our customer service.
Q5: If have quality problems, how do you solve them?
A: Please provide relevant videos and photos within one month of
receipt of the shipment. We will verify it at first. If it is
really quality problem, we will work with the engineer to assist
you in solving the problem. If we cannot solve it, we will give you
a refund or resend you new one for free, but we will not bear the
freight.
